Document and Identity Fraud Detection System

1. Introduction

This project implements a document and identity fraud detection system for a savings-finance application flow, where customers save towards a home or vehicle and are financed at an allocation month. It covers the whole chain: a field-level CNN that finds forged fields on ID images, OCR checks on the machine-readable zone (MRZ) and dates, national ID (TCKN) check digits, point-in-time SQL features over the application history, a rule engine kept in YAML, a LightGBM model, a hybrid score, an alert threshold set by analyst capacity, monitoring with early-warning indicators, a scoring API and an analyst dashboard.

Forged ID detection (SIDTD test split, documents never seen in training)	Document ROC-AUC 0.989, PR-AUC 0.984; 94.6 % of forged documents caught with 4.7 % of genuine documents sent to review

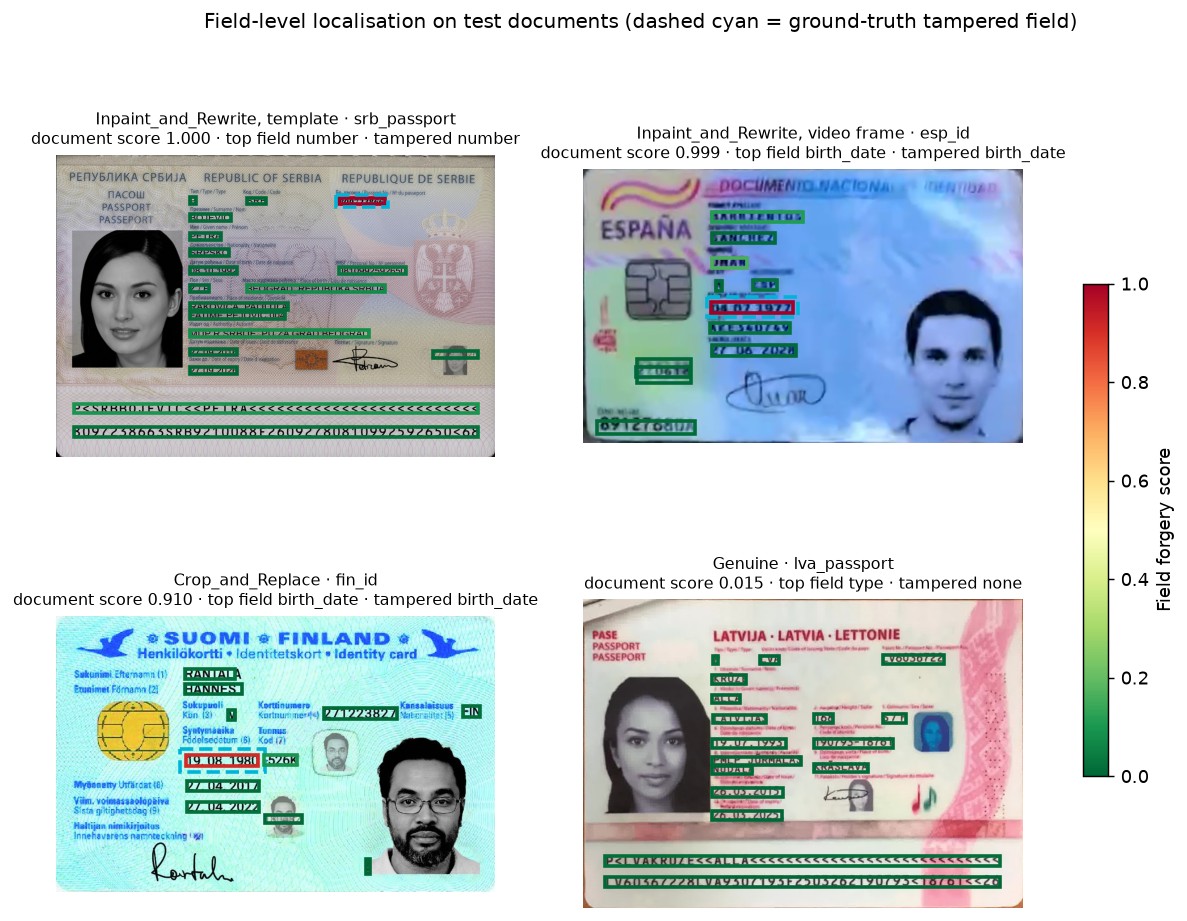

Localisation	The highest-scoring field is the tampered field in 91.4 % of flagged forgeries
Application fraud (out-of-time test, 11,863 applications, 511 frauds)	Hybrid score PR-AUC 0.577 against 0.516 for the rules; at a 2 % alert rate it catches 39.1 % of fraud applications and 58.2 % of fraud loss, against 33.9 % and 46.4 %
Analyst capacity (5 % alert rate)	Hybrid and rules both catch 57.9 % of fraud applications and about 67 % of fraud loss
New fraud type (device farm, from 2026-04)	The rule set catches 13.5 %; two candidate rules raise it to 82.0 % in the back-test, for 0.8 points more alert volume

The forgery CNN is not the main result. The device-farm pattern that appears in April 2026 slips past every production rule because the phone numbers, IBANs and addresses are all different, and it shows up only in the monthly recall by scenario and in a key risk indicator (Section 10.5). Two candidate rules, back-tested on recent applications, close that gap.

Core Features:

• Image-processing pipeline on dewarped ID images: template-guided field cropping, aspect-preserving resizing and sliding windows
• Field-level forgery CNN (ResNet-18, timm) that scores every text field of an ID image and names the most suspicious one
• Train / validation / test split grouped by source document, with documents mixed by Crop_and_Replace joined into one group, so no document leaks across splits
• Platt calibration on the validation split, an operating point fixed at 5 % of genuine documents, and ONNX export for CPU inference
• ICAO 9303 TD3 MRZ check digits, MRZ ↔ visual zone comparison and date-logic checks on Tesseract OCR output
• Turkish national ID number (TCKN) check-digit validation in Python and as a DuckDB SQL macro, tested against each other
• Synthetic savings-finance data: 30,114 applications, payments and contracts with seven fraud scenarios and deliberate noise
• Point-in-time SQL features in DuckDB: identity velocity, shared phone / IBAN / address / device / IP network, guarantor reuse, agent history, income ratios
• Rule engine that reads SQL conditions, weights and owner units from YAML
• LightGBM trained only on labels confirmed by the training cut-off, with a 90-day label-maturity gap
• Rules, LightGBM and a hybrid score compared at the same alert volume, on recall and on fraud loss stopped
• Monthly precision, recall and PSI, recall by scenario, five KRIs with RED / AMBER / GREEN status, and a back-test for candidate rules
• Image-processing figures built from the test split: pipeline stages, field localisation, genuine vs. forged patches, OCR preprocessing
• Management report and fraud-ring case study (Markdown + HTML), a Streamlit analyst dashboard and a FastAPI scoring API

2. Methodology / Approach

Each decision uses two inputs: the ID image and the application. The image is scored by the CNN and checked by OCR. The application is turned into point-in-time features in SQL. Rules and LightGBM both read the same feature table, and the hybrid score combines them.

2.1 System Architecture

ID image ──► field-level forgery CNN ──► doc score + suspicious field ─┐
         └─► OCR: MRZ check digits, MRZ↔visual zone, date logic ───────┤
application ─► point-in-time SQL features (velocity, shared phone/IBAN/ ├─► rule engine (YAML/SQL) ─┐
               device/guarantor, agent history, income ratios) ────────┘   LightGBM ──────────────┴─► hybrid score
                                                                                                   ► capacity-based alert
                                                                                                   ► monitoring, KRIs, reports

Stage	What it does	Why

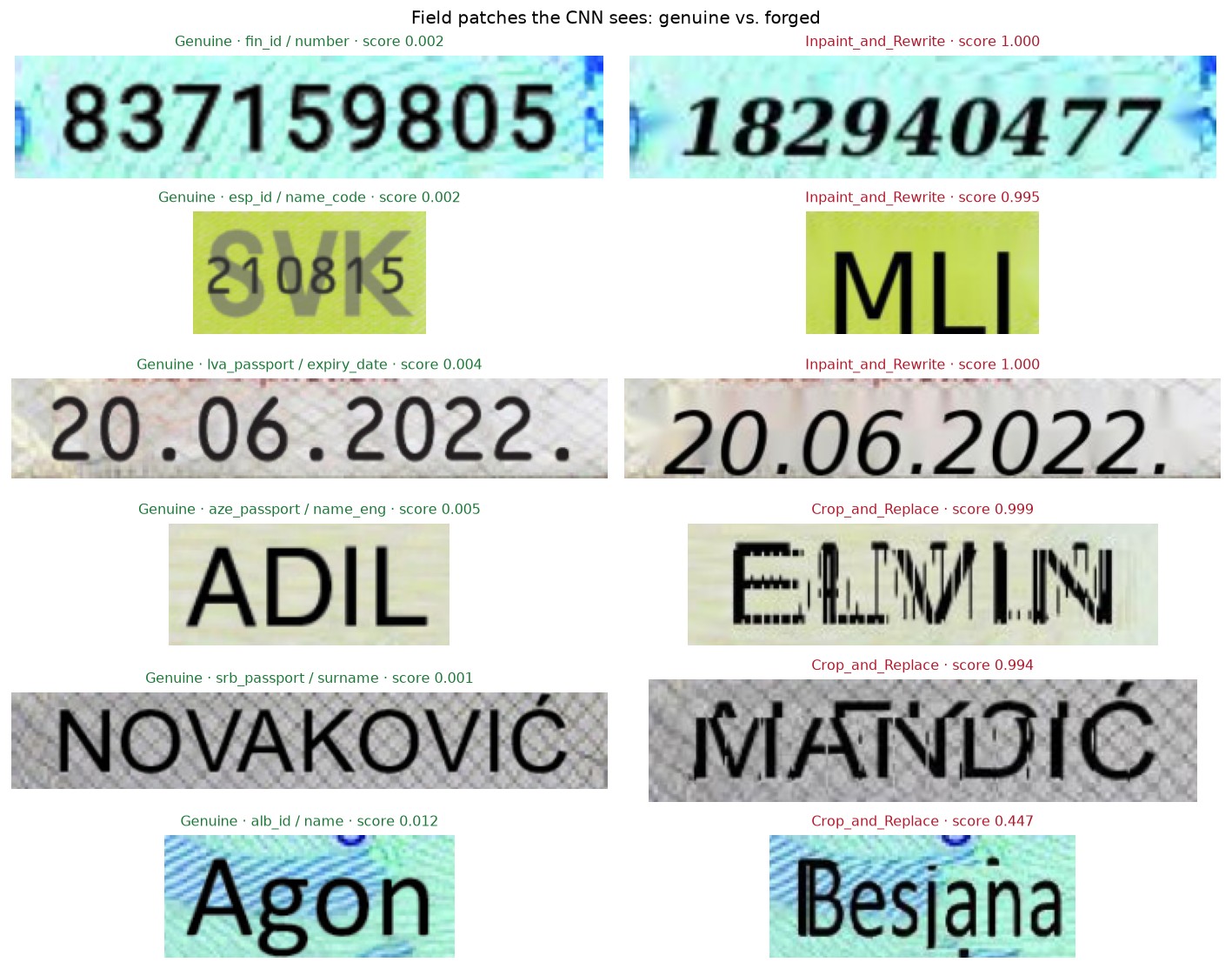

Field patches	Crops every text field with its template box (plus padding) and resizes it to 64 px height	SIDTD forgeries change a single field. A whole-document classifier would downsample that edit away
Forgery CNN	ResNet-18 scores 256-px windows of each field patch with stride 128; field score = max window, document score = max field	Small edits stay visible, and the arg-max field tells the analyst where to look
OCR checks	Tesseract reads the MRZ and the visual-zone dates (grayscale, bicubic upscaling, auto-contrast); TD3 check digits, MRZ ↔ visual-zone agreement and date logic	Rule-based checks that need no training data. Their false-positive rate on genuine documents is measured before they become rules
Features	One SQL file (sql/01_features.sql) that joins each application only to applications that arrived earlier	The same query can run at decision time, so no feature sees the future
Rules	15 SQL conditions in configs/rules.yaml, each with a weight and an owner unit; score = min(100, sum of weights)	Analysts tune thresholds without code changes, and every alert has a reason and an owner
LightGBM + hybrid	LightGBM on the same features, Platt-calibrated; hybrid = ½ · rule score / 100 + ½ · model score	The model catches combinations the rules miss; the rules stay explainable
Alert threshold	The threshold at which 5 % of applications go to review	The analysts' capacity is fixed; methods are compared at the same alert volume

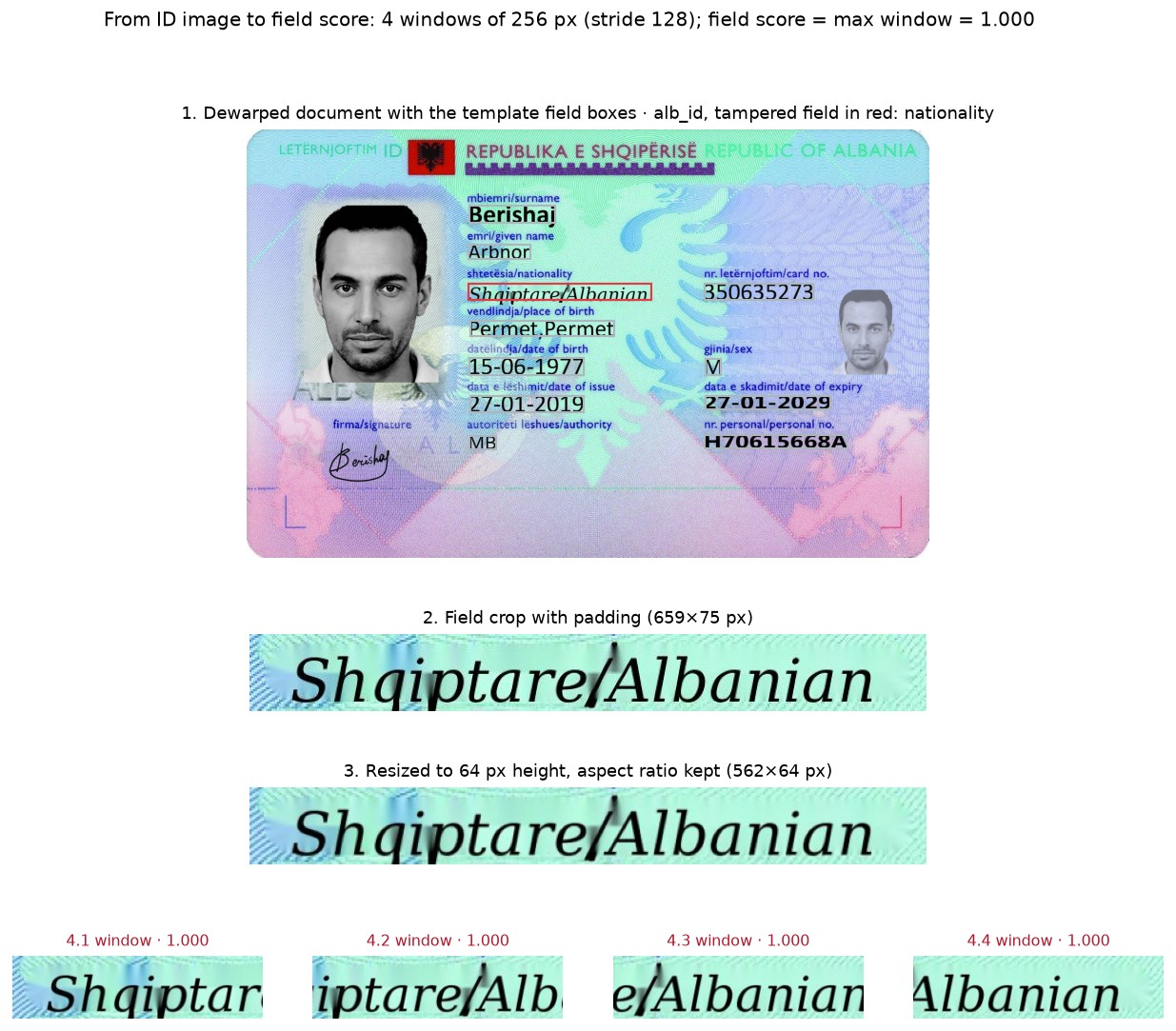

2.2 Image Processing

The document model never sees a whole ID card. Every image goes through the same four stages in training, in evaluation and in the API:

1. Dewarped input. SIDTD video frames come perspective-corrected to the template size (clips_cropped), so the field boxes annotated on the template land on the same pixels in every frame of that document.
2. Field cropping. Each text field is cut out with its template box plus padding (6 px and 12 % of the box), so the edges of a pasted or rewritten field stay inside the crop. Photo, face, signature and the document outline are skipped.
3. Resizing. The crop is resized to 64 px height with bilinear interpolation, keeping its aspect ratio so characters are not stretched.
4. Sliding windows. The patch is split into 256 px windows with stride 128. Short patches are centred on grey padding. Windows are normalised with ImageNet mean and standard deviation; during training one random window per patch is used, with brightness and contrast jitter (×0.8–1.2, ±20).

The field score is the highest window score, and the document score is the highest field score. The API, which does not know the source document, resizes the upload to the template size and uses the median box of every field for that document type, widened by 15 %.

_{Image: SIDTD [1], CC BY 4.0. Field boxes, crops and scores added.}

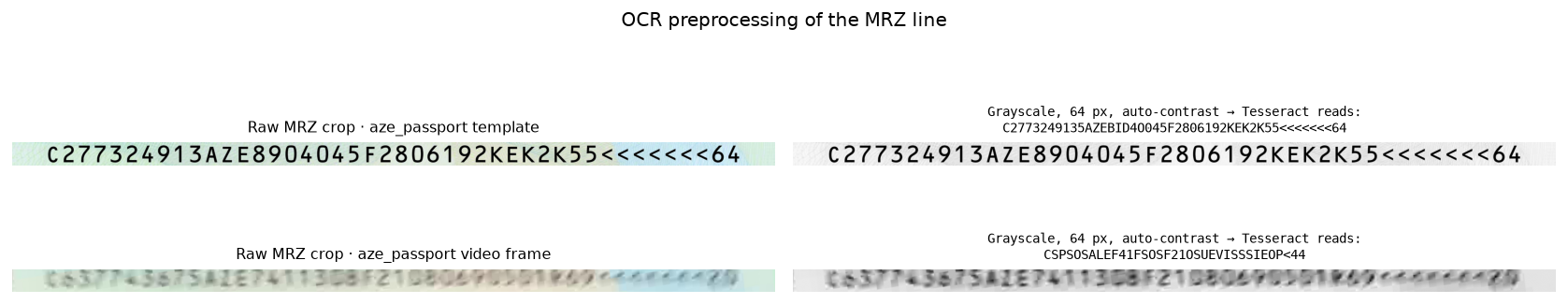

The OCR checks use their own preprocessing: the line is cropped with less padding, converted to grayscale, upscaled to 64 px with bicubic interpolation and contrast-stretched before Tesseract reads it in single-line mode (--psm 7) with a character whitelist (Section 10.2).

2.3 Implementation Strategy

• The code is a small installable package (src/docfraud/) with one module per concern and one numbered script per pipeline step (scripts/00_… to scripts/13_…). run_all.sh runs them in order and can resume from any step.
• Every path and parameter comes from configs/config.yaml through docfraud.config. Setting DOCFRAUD_CONFIG points the whole pipeline at another file.
• The split is grouped by source document. Crop_and_Replace forgeries combine two documents, so those groups are merged with union-find before splitting.
• Synthetic applications take their ID images only from the SIDTD test split, so the document score the rules see is out-of-sample.
• Features are point-in-time. Every link and velocity feature uses b.app_ts < a.app_ts.
• LightGBM is trained on applications before 2026-03-01 minus 90 days and only on frauds confirmed by 2026-03-01: 182 of the 392 frauds in that window. Later applications are the out-of-time test.
• Platt scaling, not isotonic regression, calibrates the model score, because isotonic creates ties right at the alert threshold.
• New rules go to configs/rules_candidate.yaml and are back-tested on recent data before promotion.
• The synthetic data contains noise on purpose: families at one address, returning customers, genuinely high earners, shared branch tablets, real credit defaults and OCR errors. No rule is a perfect proxy for the label.
• run_all.sh copies every figure to the project root as Document-and-Identity-Fraud-Detection-*.png / *.jpg for this README. Figures built from ID images are saved as JPEG, charts as PNG.

3. Mathematical Framework

3.1 National ID Number (TCKN) Check Digits

For an 11-digit number $d_1 \dots d_{11}$ with $d_1 \neq 0$:

$$d_{10} = \left(7 \sum_{i \in \{1,3,5,7,9\}} d_i - \sum_{i \in \{2,4,6,8\}} d_i\right) \bmod 10, \qquad d_{11} = \left(\sum_{i=1}^{10} d_i\right) \bmod 10$$

3.2 MRZ Check Digits (ICAO 9303)

Characters map to values ($0$–$9$ → 0–9, $A$–$Z$ → 10–35, < → 0) and are weighted cyclically by $(7, 3, 1)$:

$$c = \left(\sum_{i} v(x_i) \cdot w_{i \bmod 3}\right) \bmod 10$$

The second TD3 line carries check digits for the document number, birth date, expiry date, optional data and a composite of all four.

3.3 Document Score and Calibration

For field patches $f$ of document $D$, each split into windows $w$, with CNN logit $z(w)$:

$$z(D) = \max_{f \in D} \max_{w \in f} z(w), \qquad s(D) = \sigma\left(a \cdot z(D) + b\right)$$

$a$ and $b$ are fitted by logistic regression (Platt scaling) on the validation split. The operating threshold is the score above which 5 % of genuine validation documents fall.

3.4 Training Loss

Binary cross-entropy on field windows with the positive class weighted by the class ratio:

$$\mathcal{L} = -\frac{1}{N}\sum_{i}\left[p_w \, y_i \log \sigma(z_i) + (1 - y_i) \log\left(1 - \sigma(z_i)\right)\right], \qquad p_w = \frac{1 - \bar{y}}{\bar{y}}$$

3.5 Rule and Hybrid Scores

$$\text{rule score} = \min\left(100, \sum_{r \text{ fired}} w_r\right), \qquad \text{hybrid} = \frac{1}{2} \cdot \frac{\text{rule score}}{100} + \frac{1}{2} \cdot \sigma\left(a \cdot \text{logit}(p_{\text{LGBM}}) + b\right)$$

Rule decision bands: DECLINE at 70 or more, REVIEW from 30 to 69, APPROVE below 30.

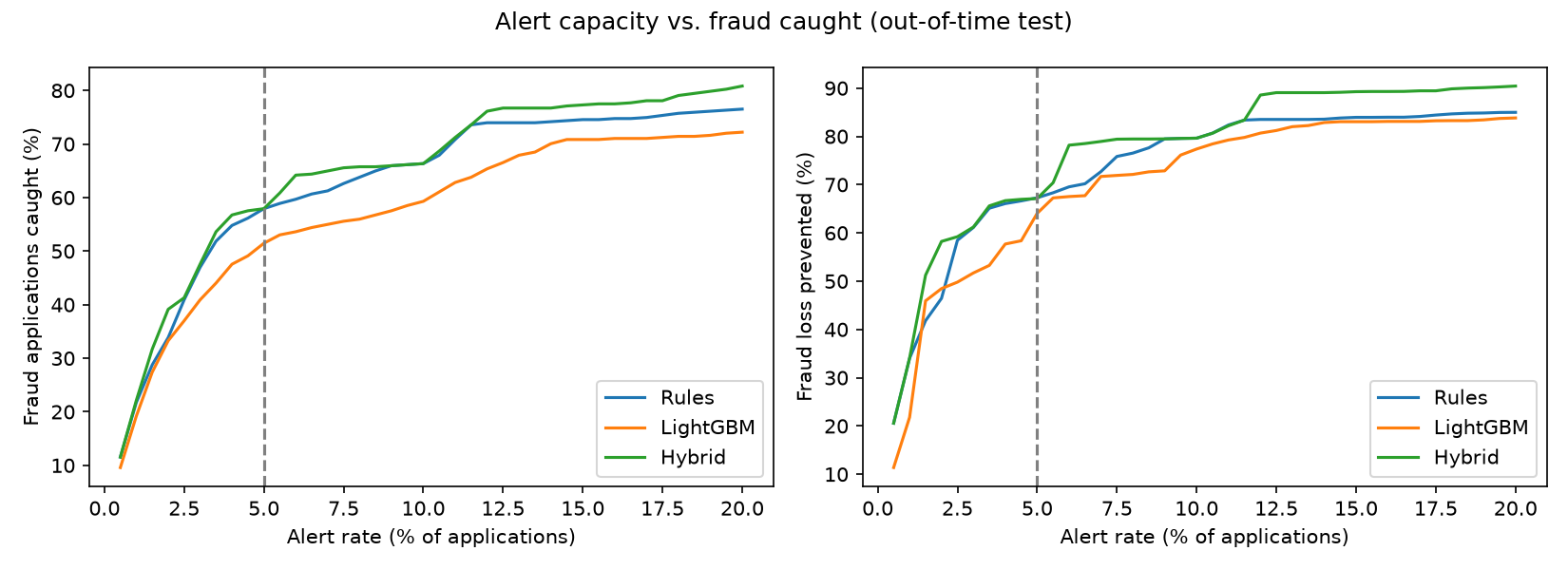

3.6 Capacity Curve

Applications are sorted by score. At alert rate $r$ the top $k = \lfloor r N \rceil$ are reviewed:

$$\text{recall}(r) = \frac{\sum_{i \le k} y_i}{\sum_i y_i}, \qquad \text{loss recall}(r) = \frac{\sum_{i \le k} y_i \, L_i}{\sum_i y_i \, L_i}$$

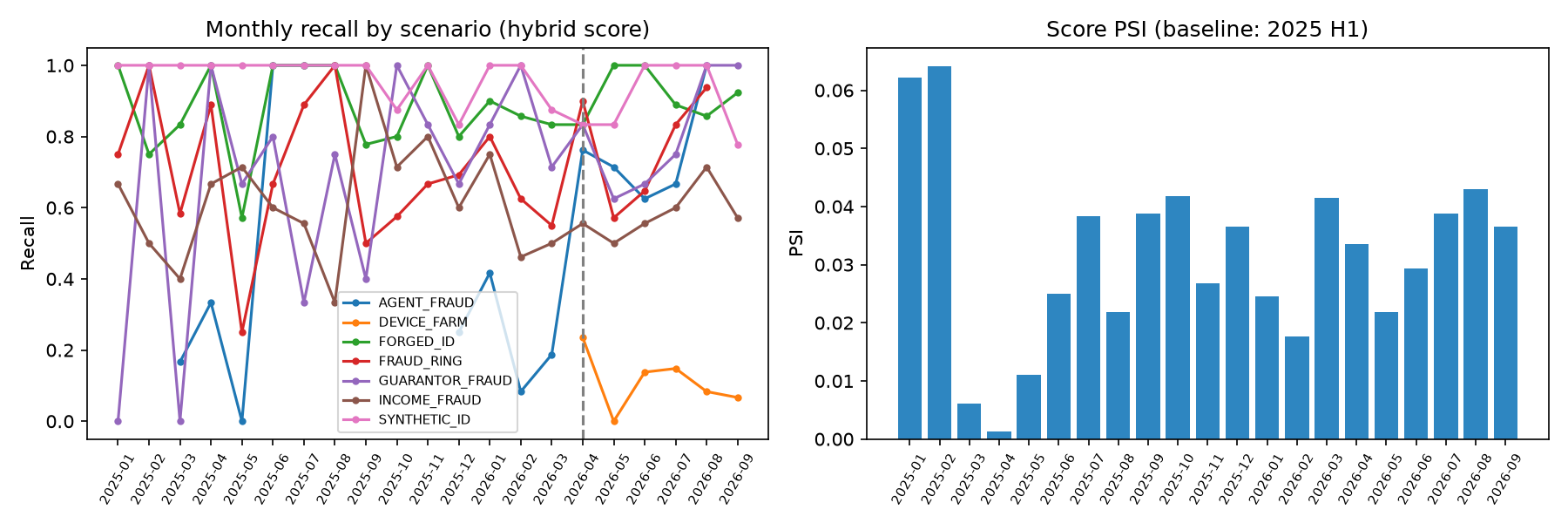

3.7 Population Stability Index

With quantile bins from the baseline months (2025-01 to 2025-06), $e_j$ the baseline share and $a_j$ the current share in bin $j$:

$$\text{PSI} = \sum_{j} (a_j - e_j) \ln \frac{a_j}{e_j}$$

4. Dataset

4.1 Datasets

Data	Source	Used for
SIDTD templates and clips (templates.zip, clips_cropped.zip)	Synthetic dataset of ID and Travel Documents [1], CC BY 4.0	Forgery CNN, OCR checks, ID images of the synthetic applications
Applications, payments, contracts	Generated by src/docfraud/data/synthetic.py (seed 42)	Features, rules, LightGBM, monitoring, reports

SIDTD holds ten document types (Albanian, Spanish, Estonian, Finnish and Slovak ID cards; Azerbaijani, Greek, Latvian and Serbian passports; Russian internal passport). Forgeries change one field, either by inpainting and rewriting it (Inpaint_and_Rewrite) or by pasting the same field from another document (Crop_and_Replace).

Split	Genuine images	Forged images	Groups (genuine / forged)
train	4,879	4,044	649 / 455
val	620	393	139 / 99
test	592	295	139 / 95

4.2 Synthetic Applications

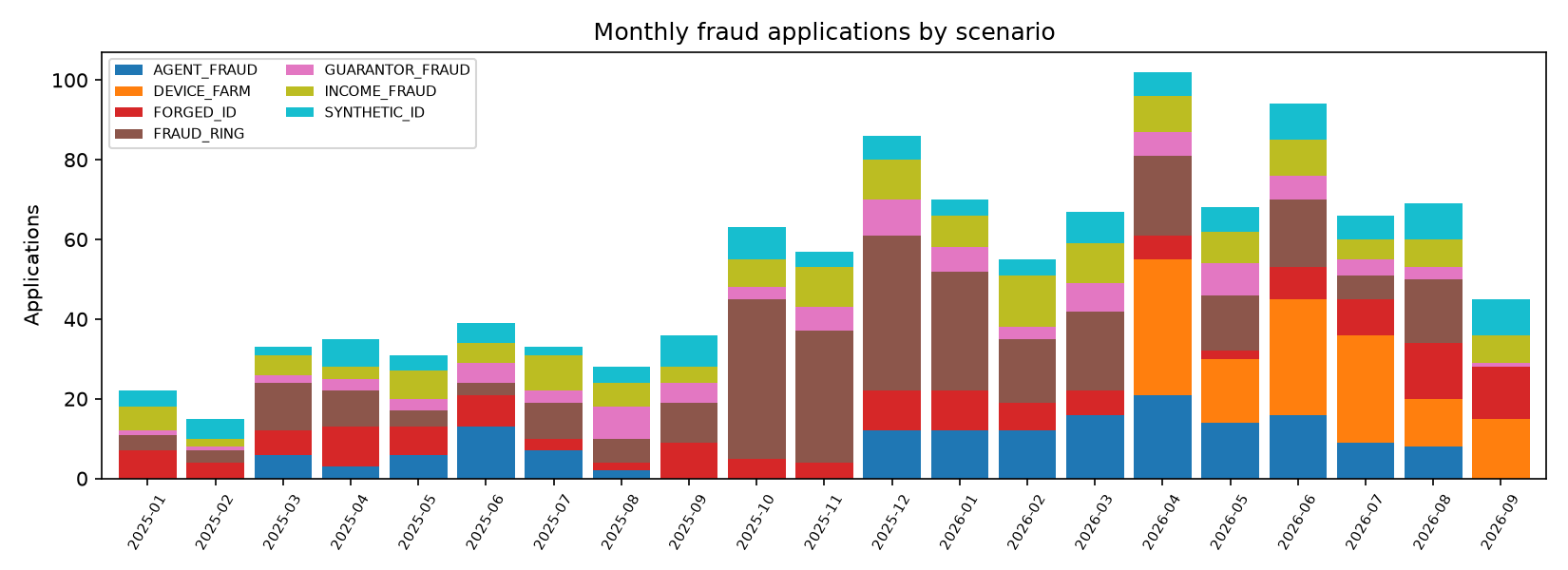

30,114 applications from 2025-01-01 to 2026-09-30 across 30 branches and 220 agents, with 290,120 payment rows and one contract per application. 1,114 applications (3.70 %) are fraud:

Scenario	Applications	Fraud loss (TRY)	How it looks in the data

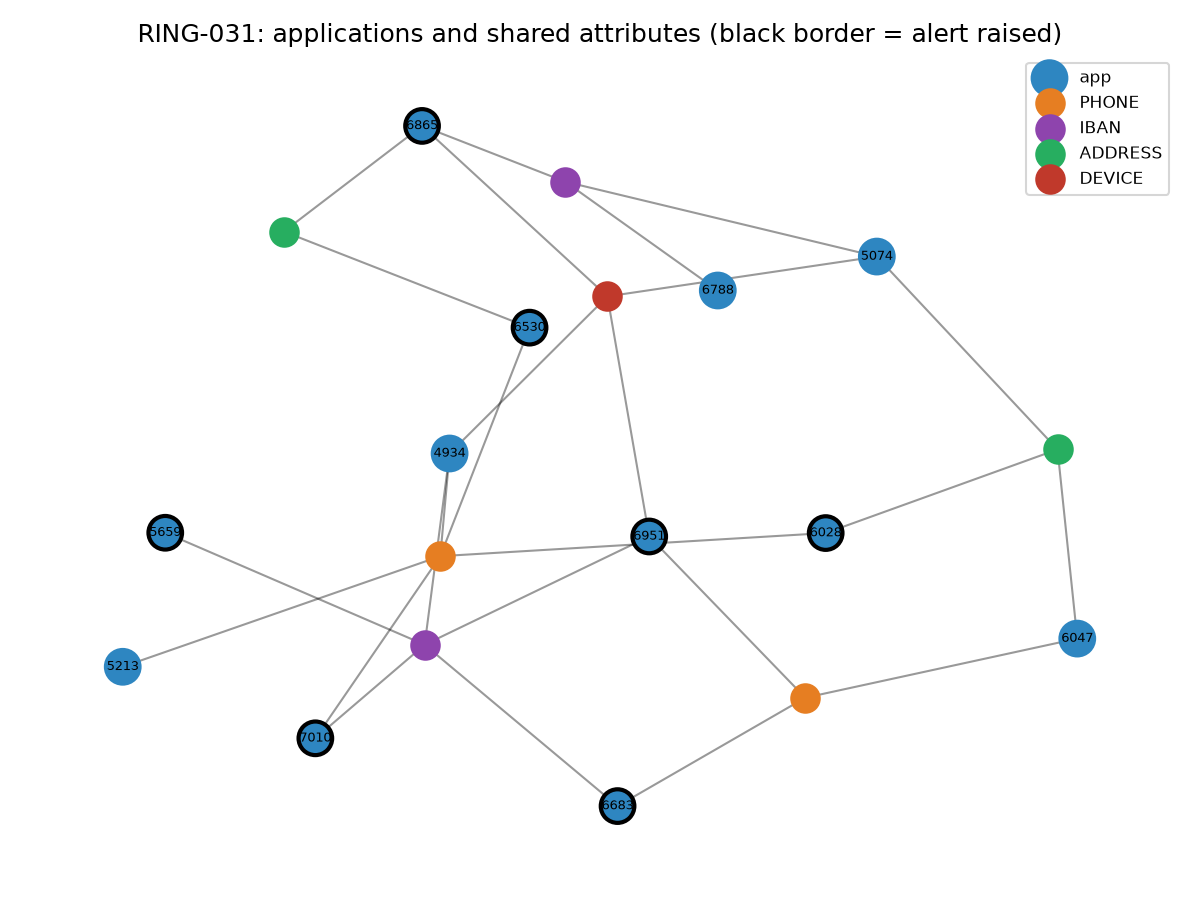

FRAUD_RING	311	59.8 M	Different identities share phone, IBAN, address or device; one branch and agent; 4–12 applications in 45 days
AGENT_FRAUD	157	5.4 M	An agent's applications are cancelled 45–100 days later; month-end clustering
INCOME_FRAUD	150	233.3 M	Income 3–6× the occupation median, unexplained down payment, fast allocation, then default
FORGED_ID	150	65.1 M	Forged SIDTD image, sometimes an invalid national ID number, the same identity at several branches
DEVICE_FARM (from 2026-04)	133	5.6 M	6–15 identities from one mobile device and one /24 IP network in 10 days; everything else differs
SYNTHETIC_ID	120	22.0 M	Invalid national ID number, age 19–25, high income, online at night
GUARANTOR_FRAUD	93	5.6 M	One guarantor on 3–6 unrelated applications, sometimes with an invalid ID number

docs/fraud_scenarios.md maps every scenario to the controls that catch it and the unit that owns them.

4.3 Leakage Controls

• No source document appears in more than one split; the check runs in step 02.
• Applications draw ID images from the test split only.
• Features look only backwards in time.
• LightGBM sees only fraud labels confirmed before the training cut-off, and the newest 90 days before the cut are dropped because their outcome is not known yet.

4.4 Evaluation Metrics

Level	Metrics

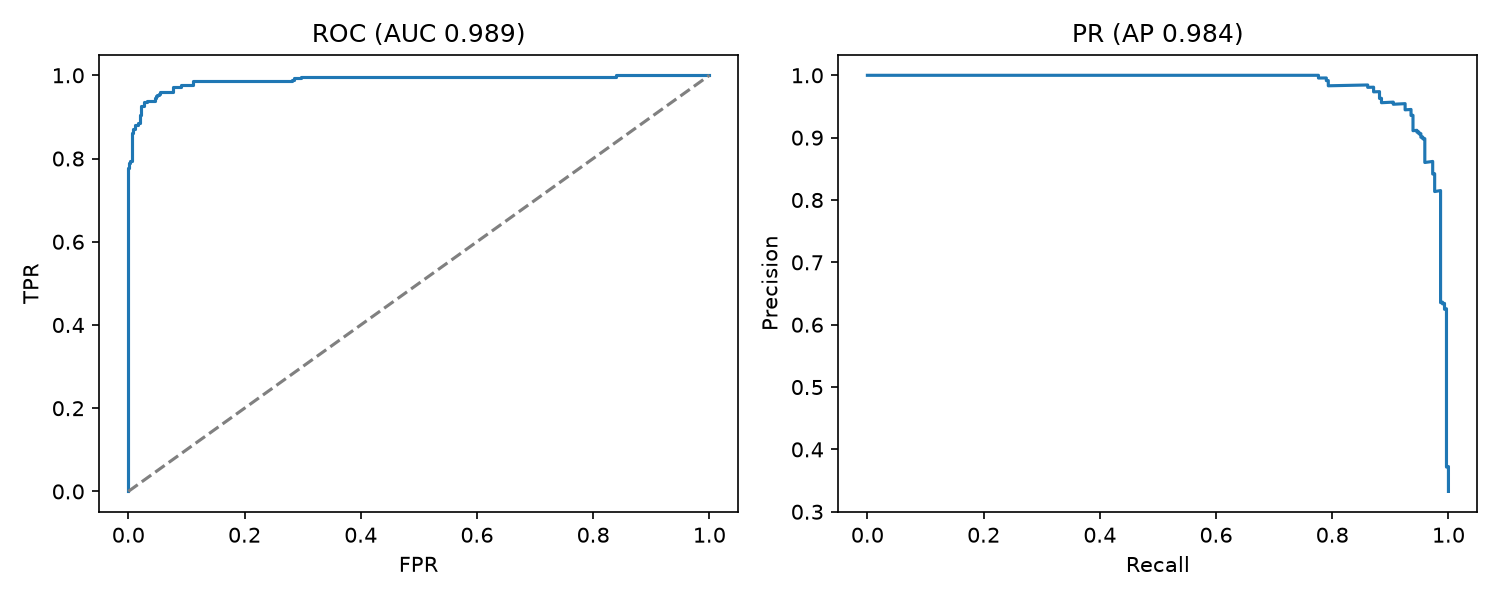

Document	ROC-AUC, PR-AUC, recall at 1 / 5 / 10 % false-positive rate on genuine documents, recall and FPR at the operating point, by fake type and document type
Field	ROC-AUC, PR-AUC, localisation accuracy of the top field, recall by tampered field
OCR check	Share of evaluated genuine and forged documents flagged
Application	ROC-AUC, PR-AUC, precision, recall and fraud loss recall at the capacity threshold, recall by scenario

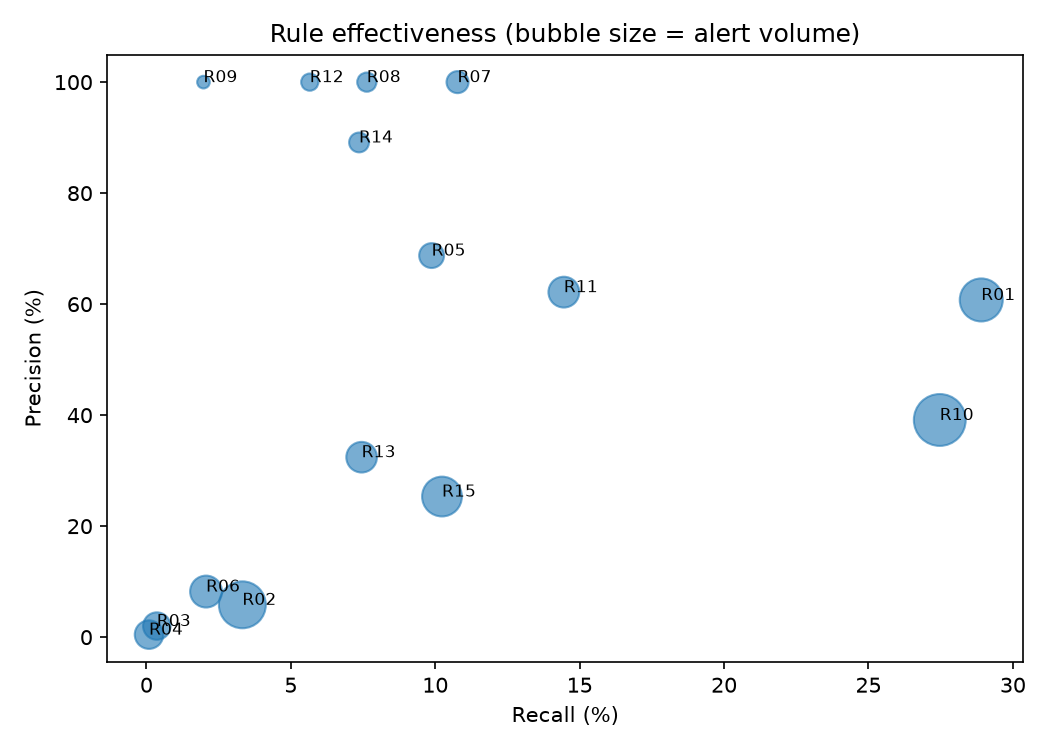

Rule	Alerts, precision, recall, loss share, unique true positives, false positives per true positive, greedy added recall
Monitoring	Monthly precision and recall, PSI, KRIs

5. Model

Forgery model: models/doc_classifier.pt (PyTorch) and models/doc_classifier.onnx (ONNX, opset 18)
Architecture: ResNet-18 from timm, ImageNet weights, one output logit
Input: field patch windows of 64 × 256 px; stride 128 at inference
Training: 6 epochs, batch 128, AdamW (lr 3e-4, weight decay 1e-4), one-cycle LR, BCE with positive weight; 30,889 training patches (13.3 % tampered); best epoch by validation PR-AUC
Calibration: models/doc_calibration.json (Platt parameters, threshold 0.392)

Epoch	Train loss	Val ROC-AUC	Val PR-AUC
1	0.997	0.927	0.823
2	0.321	0.952	0.898
3	0.143	0.953	0.899
4	0.089	0.949	0.902
5	0.063	0.950	0.902
6	0.049	0.951	0.903

Application model: models/app_lgbm.txt with models/app_lgbm_meta.json
Algorithm: LightGBM binary, 15 leaves, learning rate 0.03, feature and bagging fraction 0.8, L2 1.0, scale_pos_weight 5, early stopping on the last 20 % of the training period
Features: 31 point-in-time features (identity, income, product, channel, links, agent history, document and OCR flags)
Alert threshold: models/alert_threshold.json, hybrid score 0.127 at a 5 % alert rate

6. Requirements

requirements.txt

torch>=2.2
torchvision>=0.17
timm>=1.0
onnx>=1.16
onnxruntime>=1.18
onnxscript>=0.1
numpy>=1.26
pandas>=2.2,<3
pyarrow>=15
scikit-learn>=1.4
lightgbm>=4.3
duckdb>=1.0
Faker>=24
PyYAML>=6
pillow>=10
pytesseract>=0.3.10
networkx>=3.2
matplotlib>=3.8
markdown>=3.5
tabulate>=0.9
fastapi>=0.110
uvicorn>=0.29
python-multipart>=0.0.9
streamlit>=1.50
pytest>=8
httpx>=0.27

The same dependencies are declared in pyproject.toml; the dev extra adds pytest, httpx and ruff. The OCR checks also need the tesseract binary on PATH. pandas is held below 3.0: pandas 3 stores missing strings as NaN instead of None, which turns every synthetic application into a fraud label.

7. Installation & Configuration

7.1 Environment Setup

# Clone the repository
git clone https://github.com/kemalkilicaslan/Document-and-Identity-Fraud-Detection-System.git
cd Document-and-Identity-Fraud-Detection-System

# Tesseract for the OCR checks
brew install tesseract                            # Ubuntu: sudo apt install tesseract-ocr

# Create an environment and install the package
python3 -m venv .venv && source .venv/bin/activate
pip install -e ".[dev]"                           # or: pip install -r requirements.txt

./1_setup.sh does the same in one step: it checks Tesseract, finds a Python 3.10+ interpreter, creates .venv and installs the package.

7.2 Project Structure

Document-and-Identity-Fraud-Detection-System/
├── .github/workflows/ci.yml        # ruff + pytest on Python 3.10 and 3.12
├── configs/
│   ├── config.yaml                 # paths, split, patch, CNN, OCR, synthetic data and scoring settings
│   ├── rules.yaml                  # production rules: SQL condition, weight, owner, decision bands
│   └── rules_candidate.yaml        # candidate rules back-tested in step 11
├── scripts/
│   ├── _bootstrap.py               # puts src/ on the path, step header and timer
│   ├── 00_check_env.py … 13_image_figures.py   # the 14 pipeline steps (Section 8.2)
├── src/docfraud/
│   ├── config.py                   # config loading, project paths, seeding
│   ├── data/sidtd.py               # SIDTD manifest, field boxes, grouped split
│   ├── data/patches.py             # field cropping, resizing, sliding windows
│   ├── data/synthetic.py           # synthetic applications, payments, contracts, fraud scenarios
│   ├── classifier/model.py         # ResNet-18 factory, patch dataset, window scoring
│   ├── ocr/engine.py               # Tesseract MRZ and visual-zone reading, document checks
│   ├── validators/                 # national ID (TCKN), MRZ (ICAO 9303) and date logic
│   ├── rules/engine.py             # YAML rules → SQL on DuckDB → score and decision
│   └── scoring/metrics.py          # capacity curve, rule effectiveness, greedy order, PSI
├── sql/
│   ├── 00_macros.sql               # tckn_valid() and ip24() DuckDB macros
│   ├── 01_features.sql             # point-in-time application features
│   └── analysis/01_…10_*.sql       # segmentation, branch risk, velocity, clusters, agents, rules, trend, alert queue
├── app/
│   ├── api.py                      # FastAPI scoring API
│   └── dashboard.py                # Streamlit analyst dashboard
├── tests/                          # pytest suite (no data needed)
├── docs/fraud_scenarios.md         # scenario and control matrix
├── data/                           # SIDTD zips, extracted images, patches, DuckDB (not tracked)
├── models/                         # CNN, ONNX, calibration, LightGBM, alert threshold (not tracked)
├── reports/
│   ├── tables/                     # every metric and SQL result as CSV
│   ├── figures/                    # report figures
│   ├── logs/                       # one log per run_all.sh run
│   ├── management_report.md|.html  # management report
│   └── case_study.md|.html         # case study of the largest fraud ring
├── Document-and-Identity-Fraud-Detection-*.png / *.jpg   # README figures
├── run_all.sh                      # all steps in order; ./run_all.sh 07 resumes from step 07
├── 1_setup.sh … 5_api.sh           # one-command setup, pipeline, reports, dashboard, API
├── Dockerfile
├── .dockerignore
├── docker-compose.yml
├── .gitignore
├── Makefile
├── pyproject.toml
├── README.md
├── requirements.txt
└── LICENSE

7.3 Required Files

• Data: templates.zip and clips_cropped.zip from SIDTD [1] in data/raw/. Step 00 extracts them into data/interim/.
  • http://datasets.cvc.uab.es/SIDTD/templates.zip
  • http://datasets.cvc.uab.es/SIDTD/clips_cropped.zip
• Models: produced by steps 04, 05 and 09. The API and the dashboard need them.

7.4 Configuration Parameters

configs/config.yaml (excerpt):

splits:
  train: 0.70                 # share of document groups per split
  val: 0.15
  test: 0.15

classifier:
  backbone: resnet18
  pretrained: true
  window: 256                 # patch width the CNN sees
  stride: 128                 # sliding-window stride at inference
  epochs: 6
  batch_size: 128
  lr: 0.0003

synthetic:
  start_date: "2025-01-01"
  end_date: "2026-09-30"
  n_legit_applications: 29000
  new_fraud_type_start: "2026-04-01"   # device farm appears here

scoring:
  train_until: "2026-03-01"   # LightGBM trains before this date; out-of-time test after
  maturity_days: 90           # newest applications before the cut have no known outcome yet
  review_capacity_pct: 0.05   # analysts can review 5 % of applications

A rule in configs/rules.yaml:

- id: R07_SHARED_PHONE
  description: Phone number used by 2+ other identities in the last 90 days
  condition: phone_other_tckn_90d >= 2
  weight: 35
  owner: Internal Control

8. Usage / How to Run

8.1 Full Pipeline

./run_all.sh                   # unit tests, then steps 00–13 (~12 min on an Apple M-series, most of it CNN training)
./run_all.sh 07                # resume from step 07
PYTHON=.venv/bin/python ./run_all.sh

Or with the numbered helper scripts, in order:

./1_setup.sh                   # Tesseract check, .venv, package install
./2_run_pipeline.sh            # tests + steps 00–13 (./2_run_pipeline.sh 07 resumes)
./3_open_reports.sh            # open the HTML reports
./4_dashboard.sh               # Streamlit dashboard  -> http://localhost:8501
./5_api.sh                     # scoring API          -> http://127.0.0.1:8000/docs

8.2 Pipeline Steps

Step	Script	Produces	Seconds
00	00_check_env.py	package and Tesseract check, SIDTD extraction	5
01	01_build_manifest.py	image manifest (real/fake, fake type, tampered field) and field boxes	5
02	02_make_splits.py	grouped train/val/test split	0.2
03	03_extract_field_patches.py	one patch per text field	42
04	04_train_doc_classifier.py	doc_classifier.pt, training history	363
05	05_evaluate_doc_classifier.py	document and field scores, calibration, metrics, ONNX export	83
06	06_run_ocr_checks.py	MRZ and date checks on 887 test images, flag rates	46
07	07_generate_synthetic_data.py	applications, payments, contracts, fraud labels	27
08	08_build_database.py	DuckDB database and application_features	0.6
09	09_run_rules_and_scoring.py	rule hits, LightGBM, hybrid score, threshold, rule effectiveness	1.0
10	10_run_sql_analyses.py	ten analytical SQL results	0.4
11	11_monitoring.py	monthly metrics, PSI, KRIs, candidate-rule back-test	0.7
12	12_build_reports.py	management report and case study (Markdown + HTML), figures	0.7
13	13_image_figures.py	image-processing figures from the test split	3

Times are the run time of each script's own work on an Apple M-series machine (MPS), as printed in the log; package imports are not included.

8.3 Dashboard and API

streamlit run app/dashboard.py          # or: make dashboard
uvicorn app.api:app --reload            # or: make api   -> http://127.0.0.1:8000/docs

The dashboard has five tabs: overview, alert queue and case view (with the suspicious field drawn on the ID image), rule performance, monitoring and early warning, and the document model.

Method	Endpoint	Input → Output
GET	/health	status
POST	/documents/score	dewarped ID image + doc_type → document score, suspicious flag, top field, score per field
GET	/applications/{app_id}	stored scores, fired rules and features of an application
POST	/applications/score	point-in-time features of a new application → rule score, decision, model score, hybrid score, alert, reasons

curl -F "file=@data/interim/clips_cropped/Images/fakes/alb_id_14_fake_6_52_frame_00_dewarped.jpg" \
     -F "doc_type=alb_id" http://127.0.0.1:8000/documents/score
# {"doc_type":"alb_id","doc_score":0.9977,"suspicious":true,"top_field":"number", ...}

8.4 Tests and CI

make install    # pip install -e ".[dev]"
make test       # pytest
make lint       # ruff check src tests scripts app
make reproduce  # ./run_all.sh

pytest runs 12 tests, none of which need data or a GPU. They cover:

• national ID check digits, generation and the SQL macro against the Python version
• MRZ check digits on the ICAO example, valid and tampered lines, line 1 parsing and MRZ dates
• SIDTD date formats and date logic
• rule scores and decision bands
• the capacity curve and PSI
• masking of national ID numbers, phone numbers and IBANs in the published SQL tables

GitHub Actions runs ruff and pytest on Python 3.10 and 3.12 with CPU-only PyTorch.

9. Docker Deployment

The system can be packaged and run in a container so that the code, its dependencies and the runtime environment stay consistent across machines.

Files

• Dockerfile - builds the image (Python 3.11 + Tesseract + CPU-only PyTorch + the docfraud package).
• .dockerignore - keeps datasets, models and generated results out of the build context.
• docker-compose.yml - runs the scoring API and the dashboard and mounts data/, models/ and reports/.

Build and run

docker compose up --build

# or with the Docker CLI directly
docker build -t document-and-identity-fraud-detection-system:latest .
docker run --rm -p 8000:8000 -v "$(pwd)/data":/app/data -v "$(pwd)/models":/app/models \
  -v "$(pwd)/reports":/app/reports document-and-identity-fraud-detection-system:latest

Notes

• The default command serves the API on port 8000; the fraud-dashboard service serves Streamlit on port 8501.
• The API and the dashboard need the outputs of run_all.sh in the mounted folders. The pipeline can also run inside the container:
  • docker compose run --rm fraud-api ./run_all.sh or docker compose run --rm fraud-api pytest.
• The image uses CPU-only PyTorch, so CNN training in the container is much slower than on MPS or CUDA.

10. Application / Results

Every number in this section comes from reports/tables/ and reports/logs/ of one full run.

10.1 Forged ID Detection

Test split, 887 images (295 forged):

Metric	Value
Document ROC-AUC	0.989
Document PR-AUC	0.984
Recall at 1 % / 5 % / 10 % FPR	87.1 % / 95.3 % / 97.6 %
Field ROC-AUC / PR-AUC	0.977 / 0.892
Top field = tampered field (flagged forgeries)	91.4 %
At the operating threshold (0.392): recall / FPR	94.6 % / 4.7 %

Fake type	Forged images	Caught
Inpaint_and_Rewrite	262	96.2 %
Crop_and_Replace	33	81.8 %

_{Images: SIDTD [1], CC BY 4.0. Field boxes coloured by forgery score; the dashed box marks the ground-truth tampered field.}

Each field box is coloured by its score. On the three forgeries (Serbian passport number, Spanish ID birth date, Finnish ID birth date) the top field is the tampered one and every other field stays green; on the genuine Latvian passport no field comes close to the threshold.

_{Images: SIDTD [1], CC BY 4.0. Patches as the CNN sees them, with field scores.}

The patches show what the CNN keys on. Inpaint_and_Rewrite leaves a different font and stroke weight on a smoothed background; Crop_and_Replace leaves misaligned, doubled strokes where two documents were blended. When the pasted field is clean, as in the last row, the score drops to 0.447 and the document can slip below the threshold.

Crop_and_Replace is harder: the pasted field was printed by a real document, so its texture is genuine and only its alignment and background give it away. By document type, recall ranges from 82.8 % (Albanian ID) to 100 % (Spanish and Estonian IDs, Greek passport). The FPR is highest on Azerbaijani (17.2 %) and Serbian (10.3 %) passports. The hardest tampered fields are the document type line (75.0 % caught), surname (78.6 %) and gender (84.6 %).

10.2 OCR Checks

Check	Evaluated (genuine / forged)	Flagged genuine	Flagged forged
MRZ check digits	24 / 22	16.7 %	0 %
MRZ ↔ visual zone	20 / 20	5.0 %	0 %
Date logic	215 / 177	2.3 %	0 %

_{Images: SIDTD [1], CC BY 4.0.}

The OCR checks did not flag a single forged document, and every flag they raised was on a genuine one. SIDTD edits one visual-zone field and leaves the MRZ untouched, so MRZ check digits cannot change. Tesseract's generic English model also reads MRZ lines from video frames poorly: only 46 of the 887 test images gave a TD3 line that could be checked. In the application data the matching rules R03 and R04 reach 2.0 % and 0.5 % precision (Section 10.4), so they are candidates for retirement until an MRZ-specific OCR model is in place.

10.3 Rules, LightGBM and Hybrid at the Same Capacity

Out-of-time test from 2026-03-01: 11,863 applications, 511 frauds. Alert rate 5 %.

Method	ROC-AUC	PR-AUC	Precision	Recall	Fraud loss caught
Rules	0.844	0.516	49.9 %	57.9 %	67.3 % (30.2 M TRY)
LightGBM	0.799	0.423	44.4 %	51.5 %	64.0 % (28.8 M TRY)
Hybrid	0.868	0.577	49.9 %	57.9 %	67.1 % (30.2 M TRY)

At exactly 5 % the hybrid score and the rules flag the same frauds, because the rule score has few distinct values and a block of applications ties at 25 points. The hybrid score ranks better everywhere else on the capacity curve:

Alert rate	Rules recall	Hybrid recall	Rules loss caught	Hybrid loss caught
1 %	21.7 %	22.1 %	34.0 %	34.1 %
2 %	33.9 %	39.1 %	46.4 %	58.2 %
5 %	57.9 %	57.9 %	67.3 %	67.1 %
15 %	74.6 %	77.3 %	83.9 %	89.3 %
20 %	76.5 %	80.8 %	85.0 %	90.4 %

LightGBM alone is weaker than the rules: it learns from 182 confirmed frauds, and the label-maturity rule hides most of the recent ones. Its top features by gain are instalment-to-income, allocation month, guarantor reuse, the agent's early-cancellation rate and the down-payment ratio.

Scenario (test period)	Frauds	Hybrid recall at 5 %
SYNTHETIC_ID	53	90.6 %
FORGED_ID	58	89.7 %
GUARANTOR_FRAUD	35	74.3 %
FRAUD_RING	93	73.1 %
AGENT_FRAUD	84	63.1 %
INCOME_FRAUD	55	56.4 %
DEVICE_FARM	133	13.5 %

10.4 Rule Effectiveness

Whole period, 30,114 applications:

Rule	Alerts	Precision	Recall	Loss share	Unique catches
R01 document forgery high	530	60.8 %	28.9 %	19.6 %	115
R10 income outlier	782	39.1 %	27.5 %	69.8 %	87
R11 unexplained down payment	259	62.2 %	14.5 %	59.2 %	5
R07 shared phone	120	100 %	10.8 %	6.2 %	30
R15 night online	450	25.3 %	10.2 %	4.0 %	44
R05 invalid national ID number	160	68.8 %	9.9 %	7.2 %	9
R02 document forgery medium	635	5.8 %	3.3 %	1.9 %	11
R06 identity velocity	280	8.2 %	2.1 %	2.8 %	0
R03 MRZ inconsistent	200	2.0 %	0.4 %	0.1 %	2
R04 date logic	219	0.5 %	0.1 %	0.2 %	0

Adding rules greedily by extra fraud caught, R01 and R10 together reach 51.6 % recall and the first six rules 72.6 %. The last three (R03, R04, R06) add two frauds between them and 623 alerts. R06 fires mostly on genuine returning customers.

10.5 Monitoring: a New Fraud Type Slips Through

From April 2026 a device farm sends 6–15 identities through one device and one IP network in ten days. Its monthly recall stays between 0 % and 24 %. Overall recall and PSI do not show it: the score PSI stays below 0.07 every month, and overall recall in the device-farm months (50–77 %) is within the range of 2025.

The KRIs do:

KRI (2026-09)	Value	Status
Documents with forgery score ≥ 0.5	3.70 %	GREEN
Online applications from a device seen with 2+ identities	14	AMBER
Applications with a shared phone or IBAN	6	GREEN
Agents with early-cancellation rate ≥ 20 % and z > 3	3	RED
Score PSI against the baseline	0.037	GREEN

Back-test of the candidate rules R16 (same device, 2+ identities in 7 days) and R17 (same /24 network, 3+ identities in 7 days) on applications since 2026-04-01:

Rule set	Alert rate	Precision	Recall	Device-farm recall	Loss recall
Production rules	5.0 %	50.9 %	58.3 %	13.5 %	66.2 %
+ candidate rules	5.8 %	58.3 %	78.8 %	82.0 %	79.2 %

Both candidate rules fired only on fraud in the back-test (107 and 92 alerts).

10.6 Network and Agent Analysis

The case study (reports/case_study.html) follows ring RING-031: 12 applications at one branch through one agent in 40 days, where 8 applications share a phone number, 8 an IBAN, 5 an address and 4 a device, with 2.4 M TRY lost. 7 of the 12 applications raised an alert. The first three did not, because the point-in-time link rules only fire once a phone or IBAN has been seen with another identity. The fourth application raised the first alert on 2026-01-10 through its forged document.

The shared-attribute cluster query (sql/analysis/04) puts device clusters of 9–15 identities on top, all fraud. The agent anomaly query (sql/analysis/05) finds four agents with early-cancellation z-scores of 2.7 to 9.6; their applications hold 177 confirmed frauds. The top three branches by fraud rate (Izmir S015, Gaziantep S021, Samsun S008) run at 9.3–9.7 % against 3.7 % overall.

10.7 Problems Found Along the Way

1. pandas 3 labelled every application as fraud. pandas 3 stores missing strings as NaN, so the check scenario is not None was true on every row and the fraud rate came out at 100 %. pandas is held below 3.0 in requirements.txt and pyproject.toml.
2. ONNX export with recent PyTorch. torch.onnx.export now uses the dynamo exporter, which needs onnxscript and cannot convert this model down to opset 17. The export now uses opset 18 and writes a single .onnx file.
3. A coarse rule score ties at the capacity threshold. The rule score takes few distinct values, so at a 5 % alert rate the cut falls inside a block of applications with the same score, and the hybrid score inherits the same set of alerts. A small random tie-breaker keeps the capacity curves reproducible; the PR-AUC and the curve at other alert rates show the difference (Section 10.3).

10.8 Limitations

• The applications are synthetic. SIDTD has no Turkish ID cards, so SIDTD images stand in for the applicant's ID image.
• The OCR checks add almost nothing (Section 10.2). An OCR-B / MRZ-specific model is the next step.
• The test split holds only 33 Crop_and_Replace forgeries, so their recall has a wide uncertainty.
• LightGBM learns from 182 confirmed frauds. Its score is low in absolute terms (the threshold sits at 0.001 on the model score), and the hybrid score relies mostly on the rules.
• The scenario mix and fraud rates are set by the generator. The results show how the controls behave, not how often each fraud type occurs in practice.

11. Tech Stack

11.1 Core Technologies

• Programming Language: Python 3.10+
• Deep Learning: PyTorch with timm (ResNet-18), ONNX and ONNX Runtime
• OCR: Tesseract 5 via pytesseract
• Database and SQL: DuckDB (point-in-time features, rule engine, analytical SQL)
• Machine Learning: LightGBM, scikit-learn
• Serving: FastAPI + Uvicorn, Streamlit
• Hardware: Apple M-series (MPS); CUDA used automatically when available, CPU otherwise
• Tooling: pytest, ruff, GitHub Actions, Docker

11.2 Libraries & Dependencies

Library	Version	Purpose
torch / torchvision	2.2+ / 0.17+	CNN training and inference, MPS/CUDA acceleration
timm	1.0+	ResNet-18 backbone with ImageNet weights
onnx / onnxruntime / onnxscript	1.16+ / 1.18+ / 0.1+	Model export and CPU inference in the API
numpy / pandas / pyarrow	1.26+ / 2.2–2.x / 15+	Arrays, tables, Parquet
scikit-learn	1.4+	Platt calibration, metrics
lightgbm	4.3+	Application fraud model
duckdb	1.0+	Database, features, rules, SQL analyses
Faker	24+	Synthetic names for applicants and agents
PyYAML	6+	Config and rule files
pillow	10+	Image I/O, field cropping
pytesseract	0.3.10+	Tesseract OCR wrapper
networkx	3.2+	Fraud ring graph
matplotlib	3.8+	Figures
markdown / tabulate	3.5+ / 0.9+	HTML reports, Markdown tables
fastapi / uvicorn / python-multipart	0.110+ / 0.29+ / 0.0.9+	Scoring API
streamlit	1.50+	Analyst dashboard
pytest / httpx	8+ / 0.27+	Tests

11.3 Algorithm Components

Component	Method	Purpose
Image preprocessing	Template-guided field crops, 64 px aspect-preserving resize, 256 px sliding windows	Keep single-field edits at full resolution
OCR preprocessing	Grayscale, bicubic upscaling, auto-contrast	Readable input for Tesseract
Forgery detection	ResNet-18 on field windows, max pooling over windows and fields	Find small single-field edits and name the field
Calibration	Platt scaling on the validation split	Turn logits into probabilities; fix the operating point
Document checks	ICAO 9303 check digits, MRZ ↔ visual zone, date logic	Rule-based document consistency
Identity check	National ID (TCKN) check-digit algorithm	Catch invalid or made-up numbers
Features	Point-in-time self-joins in SQL	Velocity and shared-attribute links without leakage
Rules	Weighted SQL conditions, decision bands	Explainable alerts with an owner
Model	LightGBM with label maturity	Combinations the rules miss
Thresholding	Capacity curve	Compare methods at the same alert volume
Monitoring	PSI, recall by scenario, KRIs	Detect drift and new fraud types
Rule pruning	Greedy added recall, unique catches	Find rules that only add noise

11.4 Module Overview

File	Lines	Responsibility
src/docfraud/data/synthetic.py	~464	Synthetic applications, payments, contracts and the seven fraud scenarios
scripts/12_build_reports.py	~261	Management report, case study, figures
scripts/13_image_figures.py	~199	Image-processing figures from the test split
app/dashboard.py	~158	Streamlit analyst dashboard
scripts/09_run_rules_and_scoring.py	~138	Rules, LightGBM, hybrid score, capacity threshold, rule effectiveness
scripts/11_monitoring.py	~123	Monthly metrics, PSI, KRIs, candidate-rule back-test
app/api.py	~121	FastAPI scoring API
scripts/05_evaluate_doc_classifier.py	~120	Document scores, calibration, metrics, ONNX export
src/docfraud/ocr/engine.py	~112	Tesseract reading and document checks
src/docfraud/data/sidtd.py	~112	SIDTD manifest, field boxes, grouped split
sql/01_features.sql	~106	Point-in-time application features
src/docfraud/classifier/model.py	~83	Model factory, patch dataset, window scoring
scripts/04_train_doc_classifier.py	~75	CNN training loop
src/docfraud/scoring/metrics.py	~72	Capacity curve, rule effectiveness, greedy order, PSI
scripts/06_run_ocr_checks.py	~71	OCR checks on the test split
src/docfraud/validators/mrz.py	~66	ICAO 9303 TD3 parsing and check digits
src/docfraud/validators/dates.py	~55	SIDTD date parsing and date logic
src/docfraud/data/patches.py	~44	Field cropping and sliding windows
src/docfraud/rules/engine.py	~42	YAML rules on DuckDB
src/docfraud/validators/tckn.py	~37	National ID (TCKN) check digits

12. License

The code, documentation, configuration, SQL, synthetic data generator and generated reports of this project are licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0).

This license does not cover the datasets or the figures that contain dataset images. They stay under the terms of their owners:

Dataset	Terms	Used here for
SIDTD [1]	CC BY 4.0. Attribution required; results must cite [1]	Forgery CNN training and evaluation, OCR checks, ID images of the synthetic applications, figures in Section 2.2, Section 10.1 and Section 10.2
MIDV-2020 [10]	Terms set by its authors on the dataset page; cite [10]. Mock documents with artificially generated faces and text	Source of the genuine documents inside SIDTD

Figures. The figures in Section 2.2, Section 10.1 and Section 10.2 contain SIDTD images (Boned et al., 2024), licensed under CC BY 4.0. Changes: images cropped and resized; field boxes, scores and OCR output added. Reuse of these figures must follow the CC BY 4.0 terms of SIDTD.

Data and models. The SIDTD images are not redistributed in this repository; download them from the official source (Section 7.3). Trained models are produced by the pipeline and are not tracked.

Synthetic data. The application data is synthetic and contains no real person's data. Its national ID numbers, phone numbers and IBANs are random and can coincide with real ones, so the tables in reports/tables/ show them only in masked form (648******62). Masked values are not unique, so each of these rows also carries a sequence key (identity_id, link_id) that says nothing about the number itself.

13. References

1. Boned, C., et al. (2024). Synthetic dataset of ID and Travel Documents. Scientific Data.
2. International Civil Aviation Organization. Doc 9303: Machine Readable Travel Documents, Part 3 and Part 4.
3. He, K., et al. (2016). Deep Residual Learning for Image Recognition. CVPR 2016.
4. Platt, J. (1999). Probabilistic Outputs for Support Vector Machines and Comparisons to Regularized Likelihood Methods. Advances in Large Margin Classifiers.
5. Ke, G., et al. (2017). LightGBM: A Highly Efficient Gradient Boosting Decision Tree. NeurIPS 2017.
6. Smith, R. (2007). An Overview of the Tesseract OCR Engine. ICDAR 2007.
7. Wightman, R. PyTorch Image Models (timm).
8. DuckDB Documentation.
9. ONNX Runtime Documentation.
10. Bulatov, K., et al. (2022). MIDV-2020: A Comprehensive Benchmark Dataset for Identity Document Analysis. Computer Optics.

---

Acknowledgments

Thanks to the Computer Vision Center (Universitat Autònoma de Barcelona) for the SIDTD dataset, to the MIDV-2020 authors for the mock documents it builds on, and to the PyTorch, timm, Tesseract, DuckDB, LightGBM, FastAPI and Streamlit communities for the tools this pipeline is built on.

---

Note: This system is designed for research and educational purposes. The application data is synthetic and SIDTD contains no Turkish ID cards, so the results show how the controls behave, not how they would perform on a real portfolio. Validate the forgery model on real Turkish ID images and the rules on confirmed fraud cases before using any of it in a credit or onboarding decision.
