Industrial Safety Gear Detection System

1. Introduction

This project implements a real-time industrial safety gear detection and compliance monitoring system using a custom-trained YOLO26x model on the Ultralytics Platform. The system detects workers in industrial environments, identifies their personal protective equipment (PPE), and classifies each individual's compliance status, showing visual warnings for missing safety gear.

Workplace safety enforcement matters in high-risk environments such as factories, construction sites, and manufacturing facilities. Manual inspection is slow and error-prone; this system automates PPE compliance monitoring with computer vision, running real-time safety audits on existing camera infrastructure.

It processes video streams to detect and track multiple workers at once and check each one for four safety equipment items.

Core Features:

• Real-time worker detection and centroid-based multi-person tracking
• 4-class PPE detection: helmet, safety vest, gloves, face mask
• Per-person equipment assignment via IoU and bounding box center analysis
• Compliance status classification: Compliant (green), Partial (orange), Non-compliant (red)
• Visual warning banner for workers wearing no equipment
• Annotated video recording with per-person equipment labels
• Custom-trained model: 97.1% mAP50, 94.6% Precision, 94.6% Recall

2. Methodology / Approach

The system employs a custom-trained YOLO26x model to simultaneously detect persons and safety equipment items within each video frame. A dedicated assignment algorithm then associates detected equipment with the nearest worker using spatial overlap metrics, and a centroid tracker maintains consistent person identities across frames.

2.1 System Architecture

The industrial safety gear detection pipeline consists of:

1. YOLO Inference: Detect all instances of person, helmet, safety-vest, gloves, and face-mask in each frame
2. Equipment Assignment: Map detected PPE items to their corresponding worker using IoU and center-in-box tests
3. Person Tracking: Centroid-based tracker assigns persistent IDs across frames with configurable lost-track tolerance
4. Compliance Assessment: Compare each worker's detected equipment set against the full required set
5. Visualization: Color-coded bounding boxes and per-item labels; warning banner for zero-equipment workers
6. Video Output: Annotated frames written to output video file

2.2 Processing Pipeline

[Video Input]
    ↓
[YOLO Detection] → [Persons + Equipment Detections]
    ↓
[Equipment-to-Person Assignment] (IoU + Center-in-Box)
    ↓
[Centroid Tracker] → [Persistent Track IDs]
    ↓
[Compliance Status Classification]
    ↓
[Bounding Box Rendering + Label Overlay]
    ↓
[Video Output]

2.3 Implementation Strategy

The implementation uses the Ultralytics YOLO framework for inference and OpenCV for video processing and annotation. Equipment assignment is performed using a two-stage scoring system: equipment whose center lies inside a person's bounding box receives an IoU bonus of +1.0, ensuring close spatial association is prioritized. The centroid tracker uses a greedy nearest-neighbor cost matrix weighted by both Euclidean distance and IoU overlap, tolerating up to 30 frames of lost detection before retiring a track.

3. Mathematical Framework

3.1 IoU & Equipment Assignment

Spatial overlap between equipment and person bounding boxes:

$$\text{IoU}(A, B) = \frac{\text{Area}(A \cap B)}{\text{Area}(A \cup B)}$$

Equipment is assigned to the person with the highest IoU score. If the equipment center lies inside the person's bounding box, a +1.0 bonus is added to prioritize close spatial association.

3.2 Centroid Tracking

Bounding box centers are used to match detections across frames:

$$c_x = \frac{x_1 + x_2}{2}, \quad c_y = \frac{y_1 + y_2}{2}$$

$$\delta = \sqrt{(c_x^{d} - c_x^{t})^2 + (c_y^{d} - c_y^{t})^2}$$

Assignments exceeding $\delta > 80$ pixels are rejected.

3.3 Performance Metrics

$$\text{Precision} = \frac{TP}{TP + FP}, \quad \text{Recall} = \frac{TP}{TP + FN}, \quad \text{mAP}_{50} = \frac{1}{N} \sum_{c=1}^{N} AP_c^{50}$$

4. Dataset

Dataset Name: Industrial Safety Gear Detection
Platform: Ultralytics Platform (Public)
License: CC BY-NC-ND 4.0
Total Images: 80
Total Annotations: 1,812
Image Format: JPG
Mean Image Size: 1,750 × 1,050 px (Mean AR: 1.78)
Mean File Size: 461.4 KB

Split Distribution:

Split	Images	Percentage
Train	64	80.0%
Validation	16	20.0%

Class Distribution:

Index	Class	Annotations	Images
3	gloves	547 (30.2%)	72
0	person	419 (23.1%)	80
1	helmet	363 (20.0%)	80
2	safety-vest	325 (17.9%)	72
4	face-mask	158 (8.7%)	41
—	Total	1,812	345

Bounding Box Statistics:

• Mean bounding box width: 114.0 px
• Mean bounding box height: 169.0 px
• Annotation locations: distributed across frame center and upper regions

5. Model

Model Name: industrial-safety-gear-detection.pt
Platform: Ultralytics Platform
License: AGPL-3.0
Architecture: YOLO26x (Ultralytics)
Training Epochs: ~300
Classes: 5 (person, helmet, safety-vest, gloves, face-mask)

Model Metrics:

Metric	Value
mAP50	97.1%
mAP50-95	83.7%
Precision	94.6%
Recall	94.6%

Training Convergence:

• precision(B): stabilizes near 1.0 after ~50 epochs
• recall(B): stabilizes near 1.0 after ~50 epochs
• mAP50-95(B): steady convergence to ~0.837 over 300 epochs
• box_loss, cls_loss, dfl_loss: all converge smoothly with no signs of overfitting

6. Requirements

requirements.txt

opencv-python>=4.8.0
numpy>=1.24.0
ultralytics>=8.0.0

7. Installation & Configuration

7.1 Environment Setup

# Clone the repository
git clone https://github.com/kemalkilicaslan/Industrial-Safety-Gear-Detection-System.git
cd Industrial-Safety-Gear-Detection-System

# Install required packages
pip install -r requirements.txt

7.2 Project Structure

Industrial-Safety-Gear-Detection-System/
├── Industrial-Safety-Gear-Detection-System.py
├── config.py
├── Dockerfile
├── .dockerignore
├── docker-compose.yml
├── .gitignore
├── README.md
├── requirements.txt
└── LICENSE

7.3 Required Files

• Custom YOLO26x Model: industrial-safety-gear-detection.pt (place in project directory)
• Input Video: Industrial environment video file (MP4, AVI, MOV)

8. Usage / How to Run

8.1 Basic Execution

python Industrial-Safety-Gear-Detection-System.py

8.2 Configuration Parameters

All adjustable parameters live in config.py. Update them there without touching the main script:

# Model and class configuration
MODEL_PATH = "industrial-safety-gear-detection.pt"
EQUIPMENT_CLASSES = {"helmet", "safety-vest", "gloves", "face-mask"}
PERSON_CLASS = "person"

# Detection thresholds
CONF_THRESH = 0.15    # Confidence threshold for YOLO inference
IOU_THRESH  = 0.15    # Minimum score for equipment-to-person assignment
MAX_LOST    = 30      # Frames before retiring a lost track
DIST_THRESH = 80.0    # Max centroid distance (px) for track matching

8.3 Input / Output

# Set these in config.py for your video
INPUT_VIDEO  = "Industrial-Safety-Gear.mp4"
OUTPUT_VIDEO = "Industrial-Safety-Gear-Detection.mp4"

8.4 Controls

• Press q to quit the application during playback

8.5 Compliance Color Coding

Status	Color	Condition
Compliant	🟢 Green (50, 220, 50)	All 4 equipment items detected
Partial	🟠 Orange (30, 165, 255)	At least 1 item detected, at least 1 missing
Non-compliant	🔴 Red (40, 40, 220)	No equipment detected — "EQUIPMENT: NONE" banner

9. Docker Deployment

The system can be packaged and run in a container so that the code, its dependencies and the runtime environment stay consistent across machines.

Files

• Dockerfile - builds the image (Python 3.11 + OpenCV/ffmpeg system libraries + Python dependencies).
• .dockerignore - keeps large media and model files out of the build context.
• docker-compose.yml - runs the container and mounts the project folder for input/output.

Build and run

docker compose up --build

# or with the Docker CLI directly
docker build -t industrial-safety-gear-detection:latest .
docker run --rm -v "$(pwd)":/app industrial-safety-gear-detection:latest

Notes

• Input and output files are read from and written to the project folder through the bind mount, so results appear on the host after the run.
• The detection model weight (.pt) bundled in the repository is used through the bind mount; any standard YOLO weight is downloaded automatically on first run.
• The script calls cv2.imshow, which needs a graphical display. On a headless server the output files are still written to disk; the live preview window is only available on Linux with X11 forwarding (see the commented lines in docker-compose.yml).

10. Application / Results

10.1 Input Video

Industrial Safety Gear:

10.2 Output Video

Industrial Safety Gear Detection:

10.3 Dataset Overview

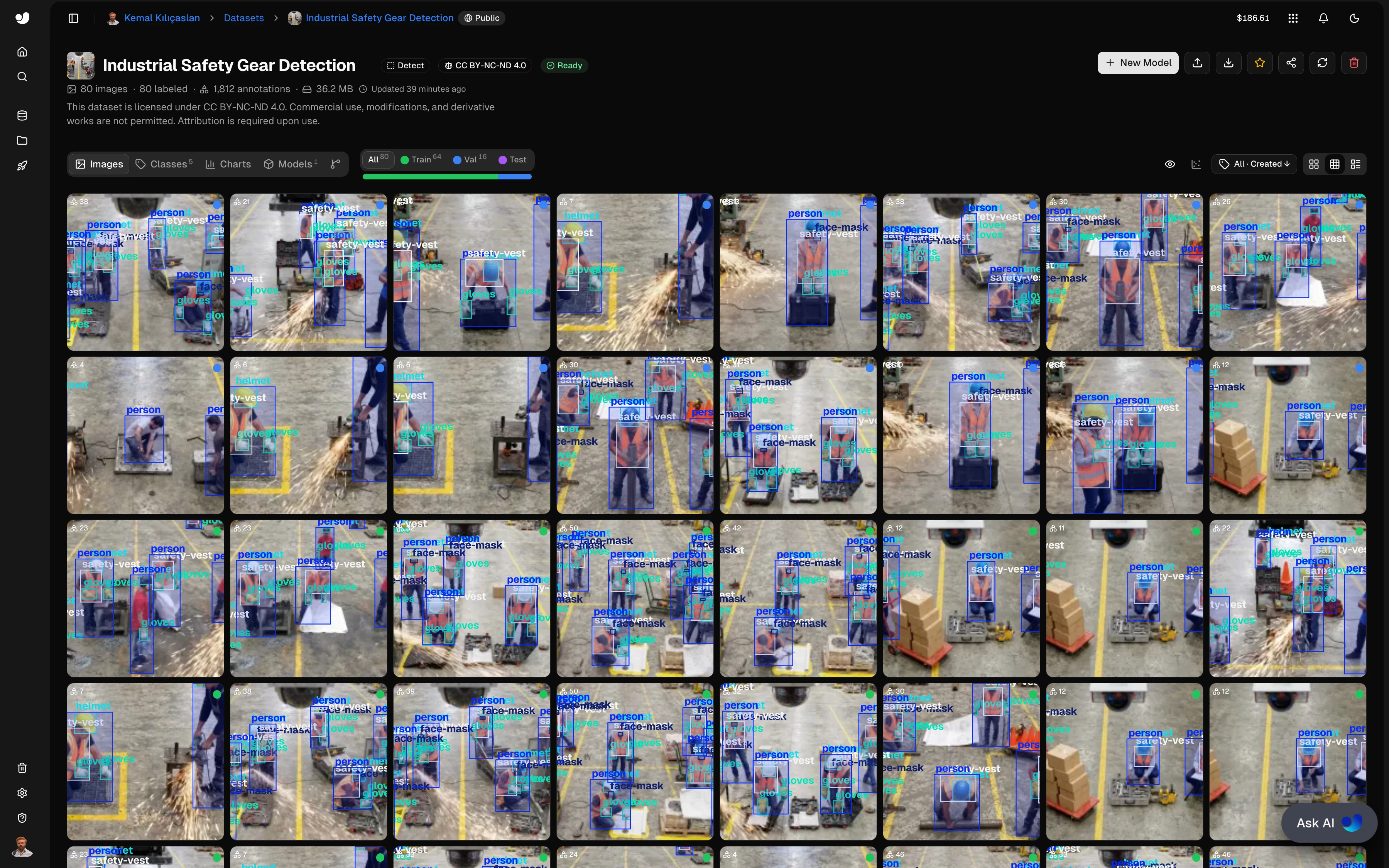

Dataset & Charts:

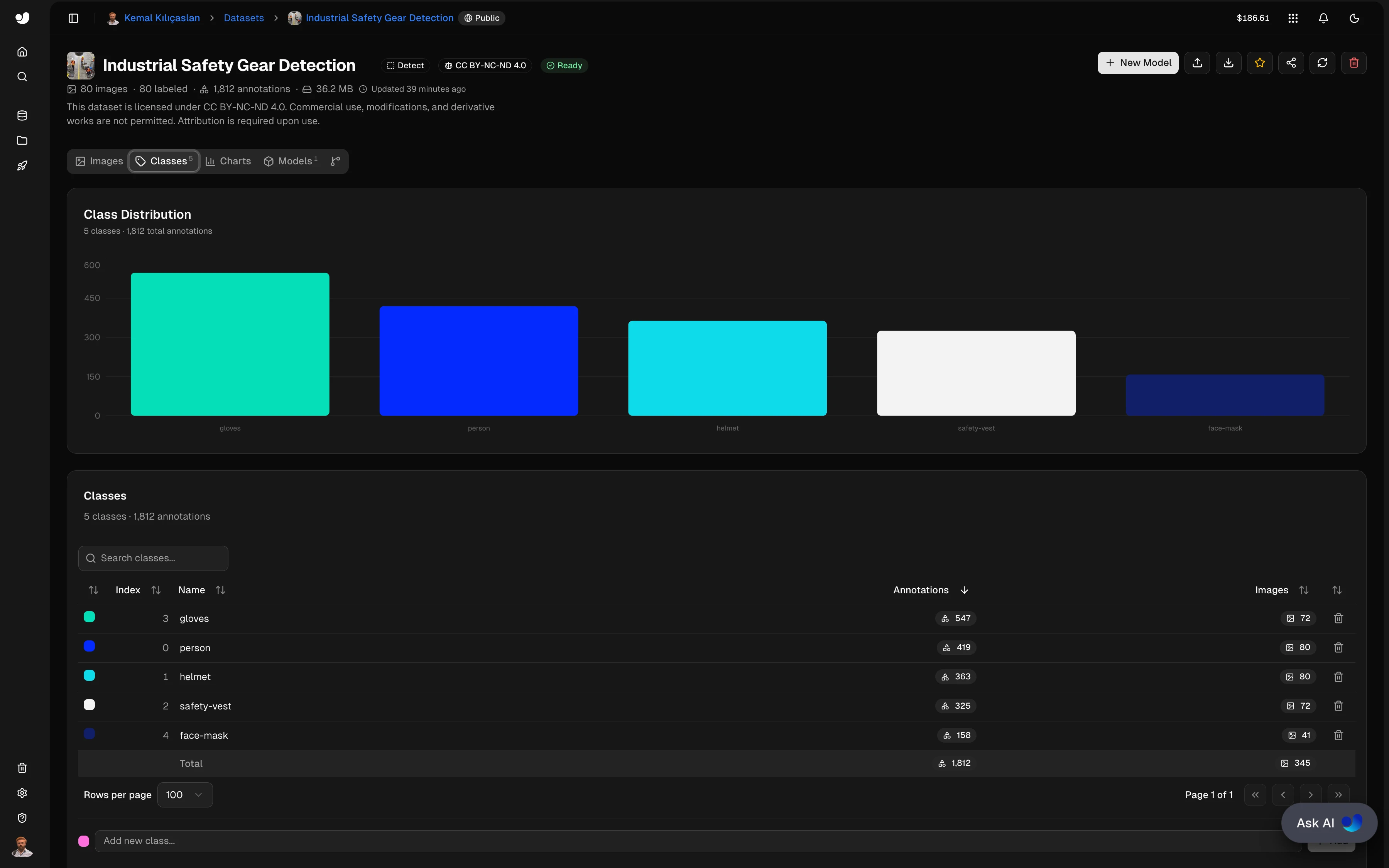

Class Distribution:

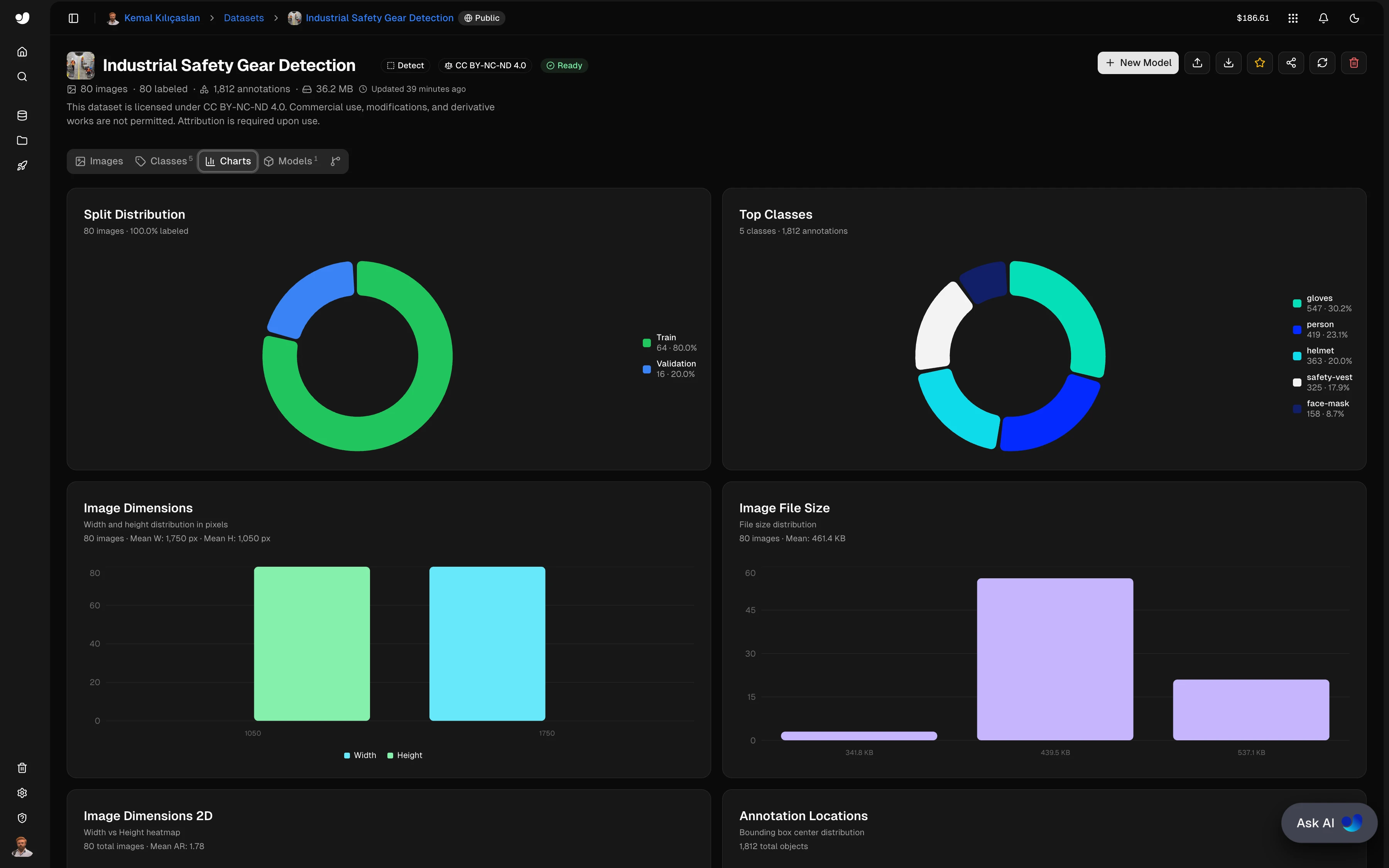

Dataset Charts 1:

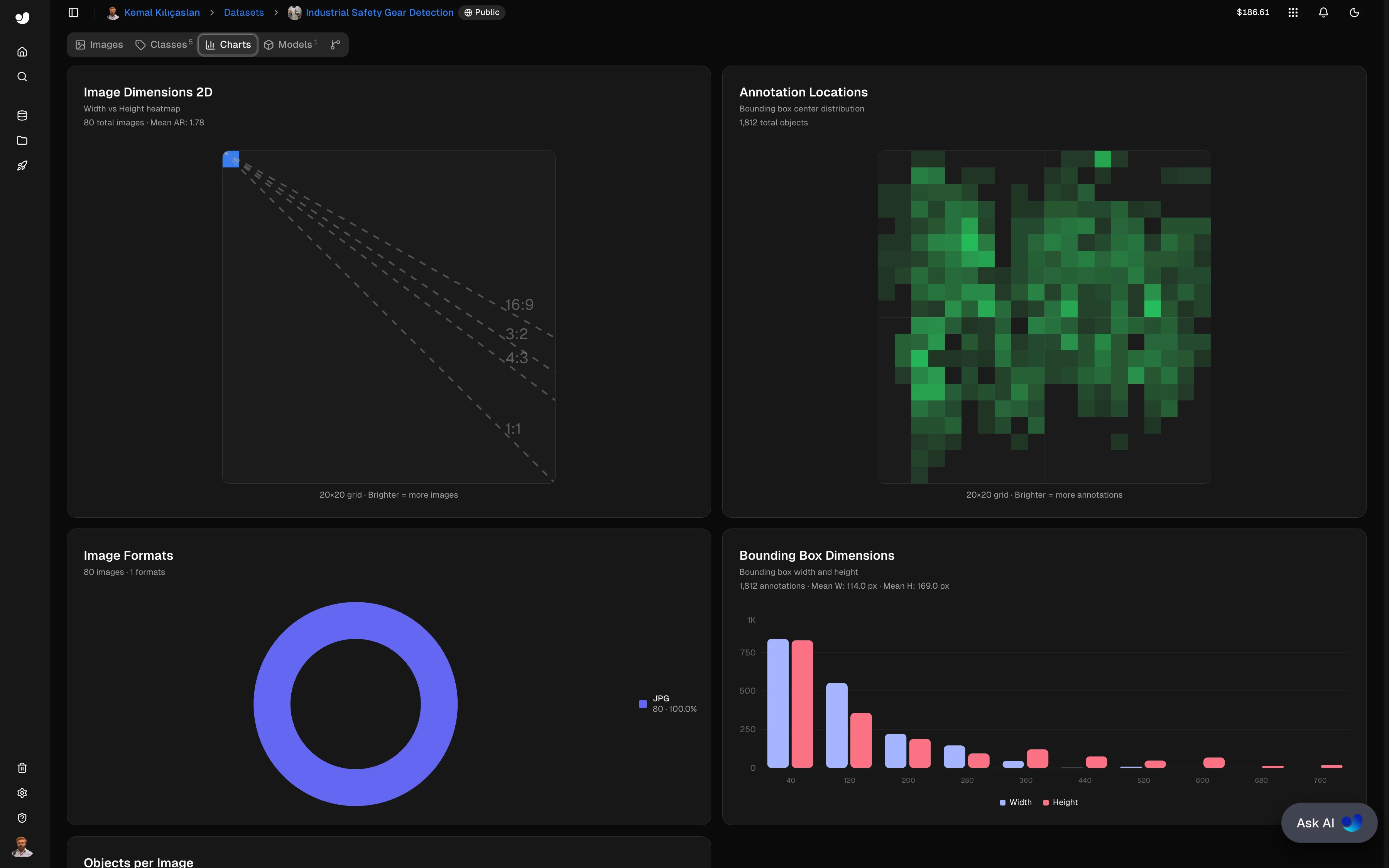

Dataset Charts 2:

10.4 Model Metrics

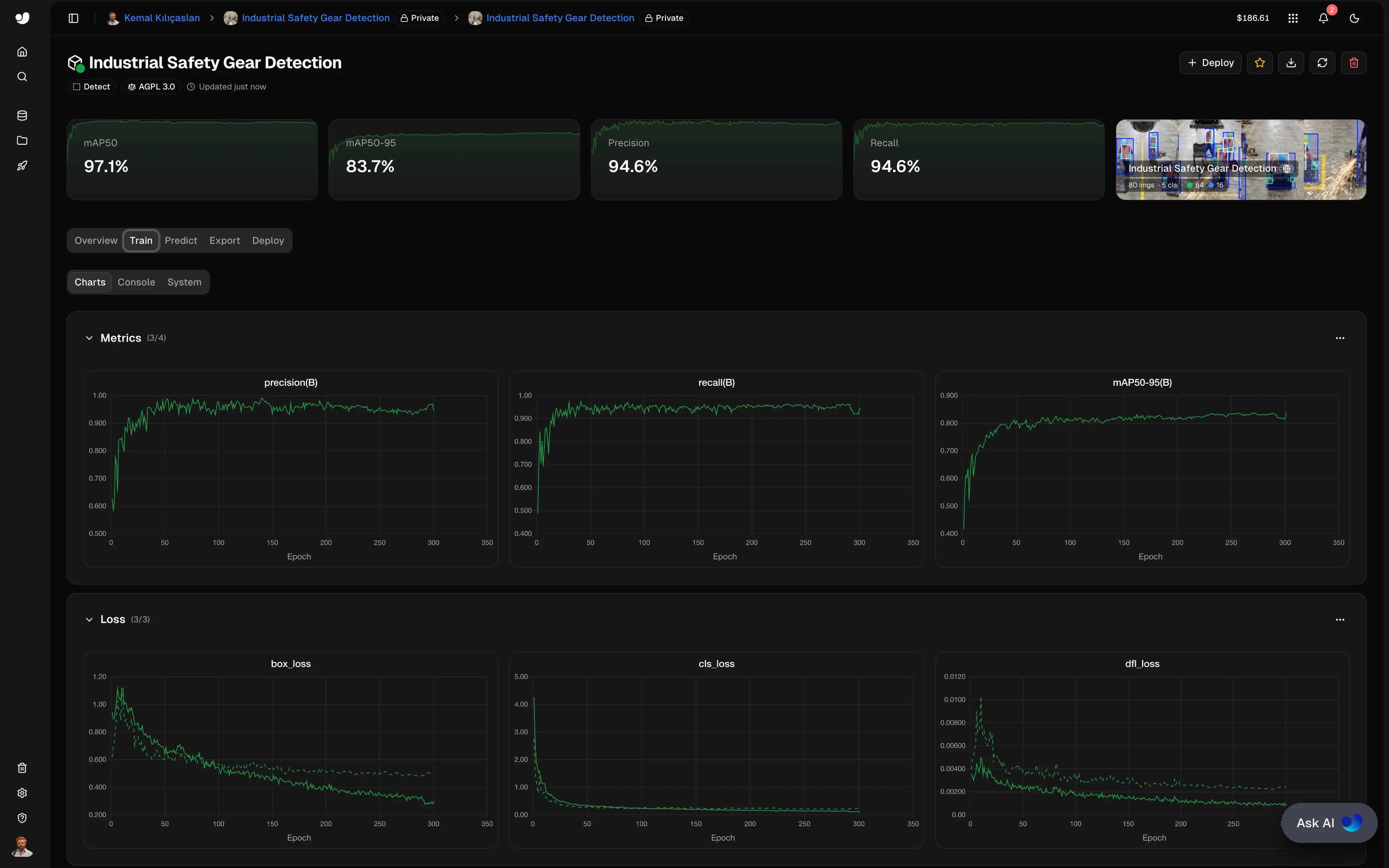

Training Metrics & Loss Curves:

mAP50: 97.1% | mAP50-95: 83.7% | Precision: 94.6% | Recall: 94.6%

11. Tech Stack

11.1 Core Technologies

• Programming Language: Python 3.8+
• Computer Vision: OpenCV 4.8+
• Deep Learning Framework: Ultralytics YOLO 8.0+
• Numerical Computing: NumPy 1.24+
• Training Platform: Ultralytics Platform

11.2 Libraries & Dependencies

Library	Version	Purpose
opencv-python	4.8+	Video I/O, bounding box rendering, blending
ultralytics	8.0+	YOLO26x model inference
numpy	1.24+	Array operations, cost matrix computation

11.3 Algorithm Components

Component	Method	Purpose
Object Detection	Custom YOLO26x	Detect persons and 4 PPE classes
Equipment Assignment	IoU + Center-in-Box scoring	Map PPE to correct worker
Person Tracking	Centroid tracker (greedy NN)	Maintain persistent worker IDs
Compliance Check	Set difference	Determine missing equipment
Visualization	OpenCV overlay	Color-coded boxes and labels

11.4 Detection Parameters

Parameter	Value	Description
Confidence Threshold	0.15	YOLO inference confidence
IoU Threshold	0.15	Min assignment score
Max Lost Frames	30	Track retirement tolerance
Distance Threshold	80.0 px	Max centroid matching distance

12. License

This project is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0).

13. References

1. Ultralytics Platform Documentation: Model training, inference, and deployment.
2. Ultralytics Platform Industrial Safety Gear Detection: Dataset annotation, training, and export.
3. OpenCV Video I/O and Drawing Functions Documentation.

---

Acknowledgments

Thanks to the Ultralytics team for the YOLO framework and Ultralytics Platform, used here for dataset annotation, model training, and export. Thanks to the OpenCV community for their real-time video processing tools.

---

Note: This system is designed for research, educational, and authorized industrial safety monitoring purposes. When deploying in production environments, ensure compliance with local privacy regulations regarding workplace video surveillance. Detection accuracy may vary depending on camera angle, occlusion, and lighting conditions. Regular model retraining with site-specific data is recommended for optimal performance.
