1. Introduction

This project implements a real-time road surface obstacle and traffic warning object segmentation system using a custom-trained YOLO26x-seg segmentation model on the Ultralytics Platform. The system processes road footage to detect and segment five classes of road-level features — organized in two semantic groups — providing pixel-level masks for ADAS, autonomous driving, and road infrastructure monitoring applications.

Road perception failures in autonomous vehicles often stem from elements the model wasn't trained to recognize. This system addresses that gap by unifying surface-level hazards (pothole, crack, patch) and traffic warning objects (traffic-cone, road-barrier) into a single segmentation pipeline, enabling holistic road scene understanding through one inference pass.

The implementation demonstrates practical applications of instance segmentation for vehicle perception, processing video streams to produce per-class colored masks, anti-aliased contour outlines, and instance-level confidence labels.

Core Features:

  • Real-time multi-class instance segmentation of road surface and traffic warning objects
  • 5-class detection: pothole, traffic-cone, road-barrier, patch, crack
  • Two-group taxonomy: Road Surface Obstacles (pothole, crack, patch) and Traffic Warning Objects (traffic-cone, road-barrier)
  • Per-class colored mask blending with configurable transparency
  • Largest-first paint order so smaller, closer instances remain visible on top
  • Anti-aliased contour outlines and luma-aware label text contrast
  • Annotated video recording with class + confidence labels per instance
  • Custom-trained model: 91.0% mAP50, 67.8% mAP50-95, 86.3% Precision, 85.2% Recall

2. Methodology / Approach

The system employs a custom-trained YOLO26x-seg segmentation model to produce pixel-level masks for each detected instance within every video frame. A two-stage rendering pipeline then composes the visualization: filled translucent masks are blended onto the frame in largest-first order, then anti-aliased contour outlines and labels are drawn on top.

2.1 System Architecture

The road surface obstacle and traffic warning object segmentation pipeline consists of:

  1. YOLO Segmentation Inference: Detect all instances of pothole, traffic-cone, road-barrier, patch, and crack with binary masks, class IDs, and confidence scores
  2. Mask Resize: Up-sample model output masks to original frame resolution using nearest-neighbour interpolation
  3. Largest-First Mask Rendering: Paint per-class colored masks onto the frame so smaller instances remain visible on top of larger ones
  4. Contour Outline: Extract external contours from each binary mask and draw anti-aliased outlines
  5. Label Overlay: Place class + confidence labels at each instance's anchor point with luma-aware text color
  6. Video Output: Annotated frames written to output video file

2.2 Processing Pipeline

[Video Input]
    ↓
[YOLO Segmentation Inference] → [Masks + Classes + Confidences]
    ↓
[Mask Resize to Frame Resolution]
    ↓
[Largest-First Mask Rendering with Per-Class Colors]
    ↓
[Contour Outline + Class Label Overlay]
    ↓
[Video Output]

2.3 Implementation Strategy

The implementation uses the Ultralytics YOLO framework for segmentation inference and OpenCV for video processing, mask rendering, contour drawing, and text overlay. The visualization is intentionally split into two passes: a fill pass that blends colored masks via alpha composition, and an outline pass that draws contours and labels on top of the blended frame. This ensures that contour edges remain crisp regardless of mask transparency, and that labels are never visually drowned out by the mask colors. Largest-first paint ordering prevents large surface defects (long cracks, wide patches) from occluding smaller, closer instances such as a single traffic-cone or distant pothole.

3. Mathematical Framework

3.1 Mask IoU and Non-Maximum Suppression

During inference, YOLO applies Non-Maximum Suppression (NMS) using Intersection over Union to discard overlapping predictions:

$$\text{IoU}(A, B) = \frac{|A \cap B|}{|A \cup B|}$$

Predictions with IoU above the configured threshold (IOU_THRESHOLD = 0.55) are suppressed in favor of the higher-confidence detection. This filtering happens before the masks reach the rendering pipeline.

3.2 Alpha-Blended Mask Overlay

Per-class colored masks are blended onto the original frame via alpha compositing:

$$I_{\text{out}} = (1 - \alpha) \cdot I_{\text{overlay}} + \alpha \cdot I_{\text{frame}}$$

where $\alpha = 0.4$ is the configured MASK_ALPHA. The overlay image is constructed by painting each mask region with its class color in largest-first order:

$$I_{\text{overlay}}(x, y) = C_{c}, \quad \forall (x, y) \in M_{i}, \quad c = \text{class}(i)$$

3.3 Luma-Based Adaptive Text Color

Label text color is chosen automatically to maximize legibility against each class's mask color, using the BT.601 luma approximation:

$$Y = 0.299 R + 0.587 G + 0.114 B$$

Text color is then selected by threshold on the perceived brightness:

$$T(Y) = \begin{cases} \text{black} & \text{if } Y > 160 \\ \text{white} & \text{otherwise} \end{cases}$$

3.4 Performance Metrics

Mask-level performance is reported via standard segmentation metrics:

$$\text{Precision} = \frac{TP}{TP + FP}, \quad \text{Recall} = \frac{TP}{TP + FN}$$

$$\text{mAP}_{50}^{(M)} = \frac{1}{N} \sum_{c=1}^{N} \text{AP}_{c}^{50, \text{mask}}, \quad \text{mAP}_{50:95}^{(M)} = \frac{1}{10} \sum_{t \in \{0.5, 0.55, ..., 0.95\}} \text{mAP}_{t}^{(M)}$$

where $TP$, $FP$, $FN$ are evaluated using mask IoU at the corresponding threshold $t$, and the average is taken over $N = 5$ classes.

4. Dataset

Dataset Name: Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation
Platform: Ultralytics Platform (Public)
License: CC BY-NC-ND 4.0
Total Images: 23
Total Annotations: 249
Image Format: WEBP (100%)
Mean Image Size: 1,784.8 × 1,050 px (Mean AR: 1.82)
Mean File Size: 188.9 KB
Total Dataset Size: 4.2 MB

Split Distribution:

Split Images Percentage
Train 16 69.6%
Validation 7 30.4%

Class Distribution:

Index Class Annotations Images
0 pothole 67 (26.9%) 11
4 crack 67 (26.9%) 13
1 traffic-cone 59 (23.7%) 12
2 road-barrier 34 (13.7%) 9
3 patch 22 (8.8%) 9
— Total 249 23

Annotation Statistics:

  • Mean objects per image: 11.7
  • Mean polygon vertices per instance: 36.4
  • Total instances: 249

5. Model

Model Name: road-surface-obstacle-and-traffic-warning-object-segmentation.pt
Platform: Ultralytics Platform
License: AGPL-3.0
Architecture: YOLO26x-seg (Ultralytics)
Training Hardware: RTX PRO 6000 (cloud GPU)
Classes: 5 (pothole, traffic-cone, road-barrier, patch, crack)

Model Metrics (Mask):

Metric Value
mAP50 (M) 96.9%
mAP50-95 (M) 80.3%
Precision (M) 95.7%
Recall (M) 92.6%

Training Notes:

  • End-to-end training, annotation, and export performed on the Ultralytics Platform
  • Annotation accelerated via SAM 3 click-to-segment workflow
  • Browser-based prediction tab used for inference testing without local GPU
  • Steady convergence of box_loss, cls_loss, dfl_loss, and seg_loss

6. Requirements

requirements.txt

opencv-python>=4.8.0
numpy>=1.24.0
ultralytics>=8.0.0

7. Installation & Configuration

7.1 Environment Setup

# Clone the repository
git clone https://github.com/kemalkilicaslan/Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation-System.git
cd Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation-System

# Install required packages
pip install -r requirements.txt

7.2 Project Structure

Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation-System/
├── Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation-System.py
├── README.md
├── requirements.txt
└── LICENSE

7.3 Required Files

  • Custom YOLO Segmentation Model: road-surface-obstacle-and-traffic-warning-object-segmentation.pt (place in project directory)
  • Input Video: Road footage (MP4, MOV, AVI)

8. Usage / How to Run

8.1 Basic Execution

python Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation-System.py

8.2 Configuration Parameters

# Model and inference configuration
MODEL_PATH           = "road-surface-obstacle-and-traffic-warning-object-segmentation.pt"
CONFIDENCE_THRESHOLD = 0.6   # Minimum confidence for a detection to be kept
IOU_THRESHOLD        = 0.9   # NMS IoU threshold during inference
MASK_ALPHA           = 0.4    # Mask transparency: 0.0 = fully opaque, 1.0 = invisible

# Visualization parameters
CONTOUR_THICKNESS = 2
LABEL_FONT        = cv2.FONT_HERSHEY_DUPLEX
LABEL_SCALE       = 0.6
LABEL_THICKNESS   = 1
LABEL_PADDING     = 4

8.3 Input / Output

# Update these lines in the script for your video
video_capture = cv2.VideoCapture("Road-Surface-Obstacle-and-Traffic-Warning-Object.mp4")
output_file   = "Road-Surface-Obstacle-and-Traffic-Warning-Object-Segmentation.mp4"

8.4 Controls

  • Press q to quit the application during playback

8.5 Class Color Coding

Group Class BGR Color
Road Surface Obstacles pothole (0, 60, 255)
crack (10, 35, 10)
patch (170, 235, 35)
Traffic Warning Objects traffic-cone (220, 230, 20)
road-barrier (235, 235, 235)

9. Application / Results

9.1 Input Video

Road Surface Obstacle and Traffic Warning Object:

9.2 Output Video

Road Surface Obstacle and Traffic Warning Object Segmentation:

9.3 Dataset Overview

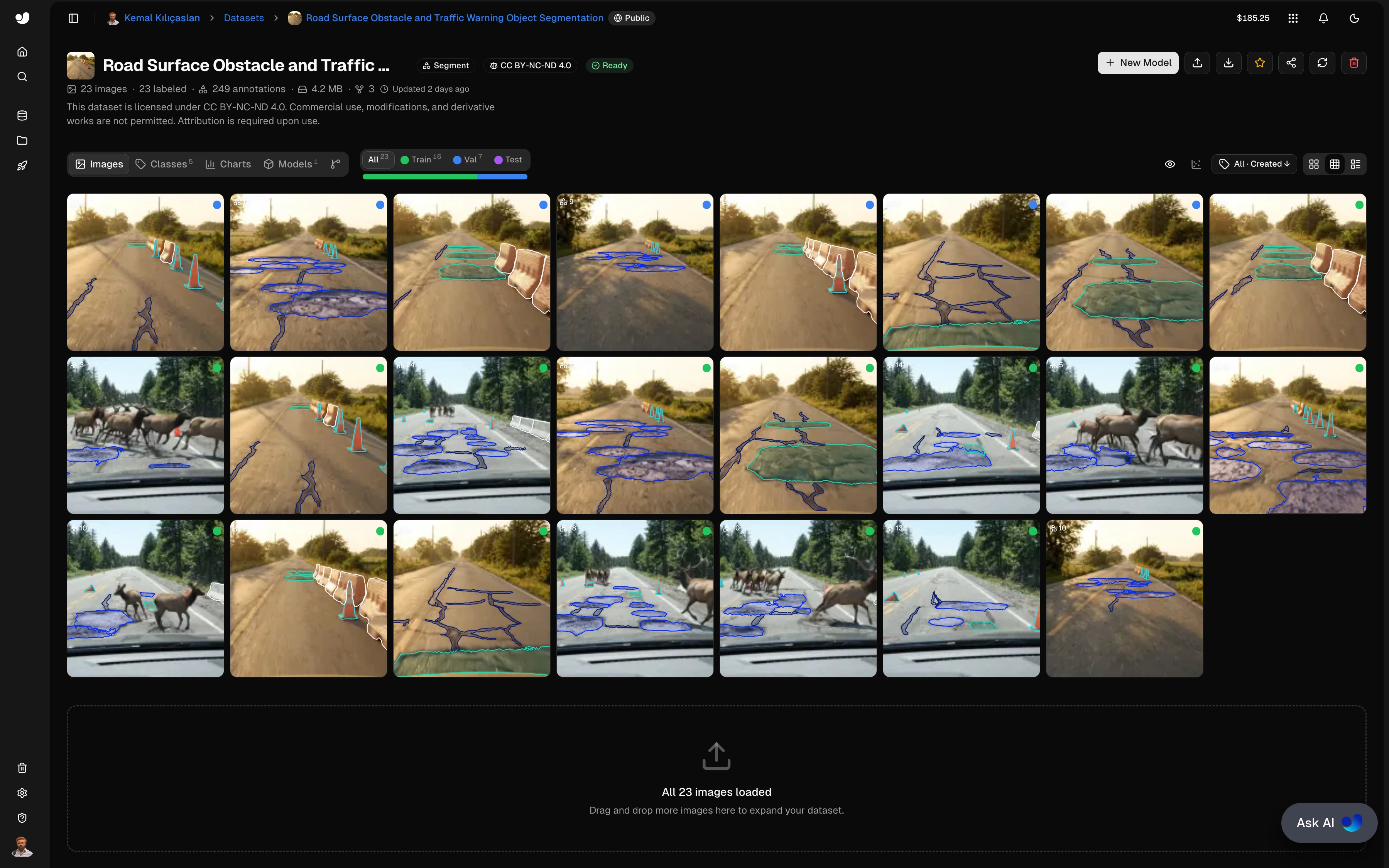

Dataset & Charts:

Road Surface Obstacle and Traffic Warning Object Segmentation Dataset

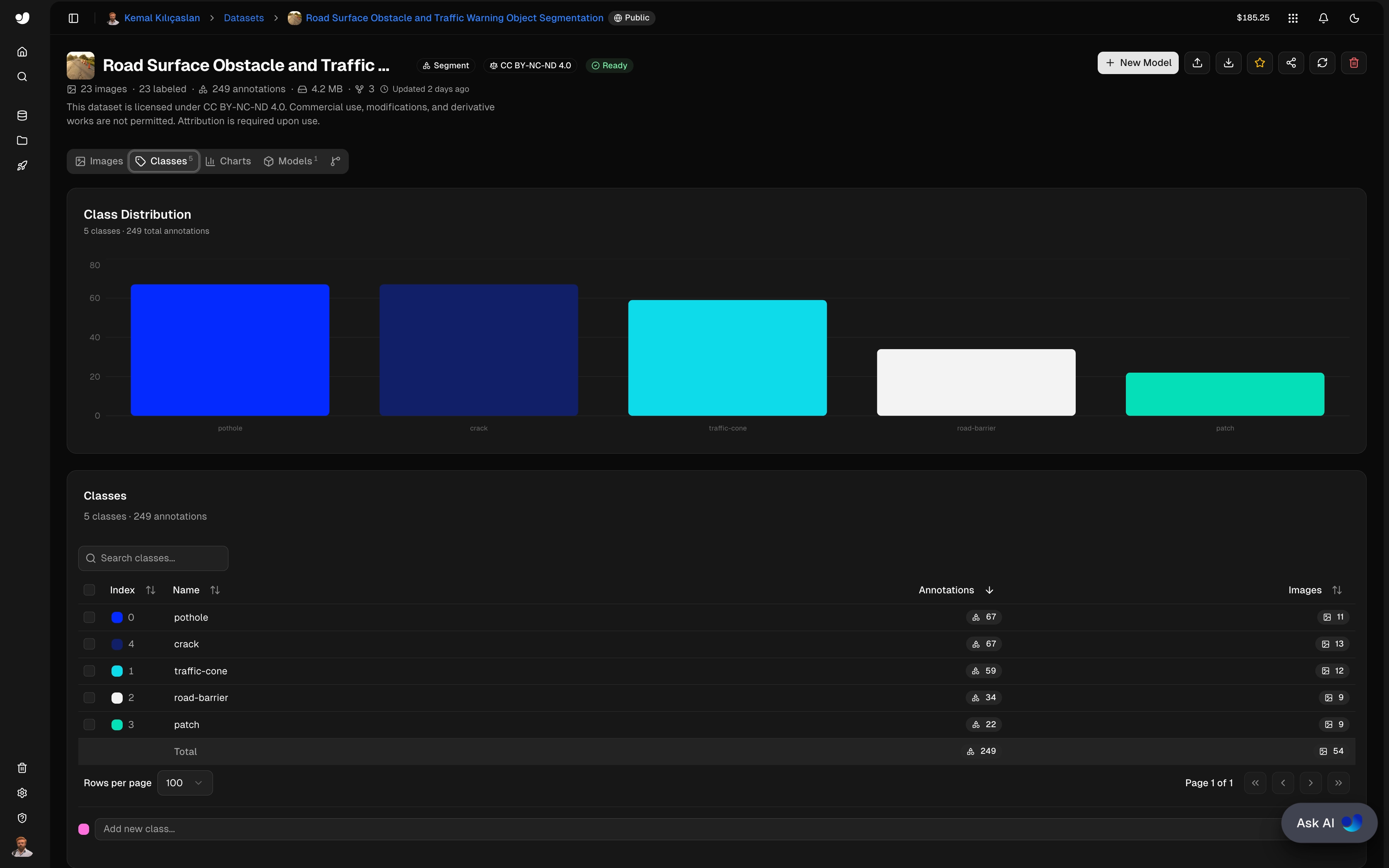

Class Distribution:

Road Surface Obstacle and Traffic Warning Object Segmentation Classes

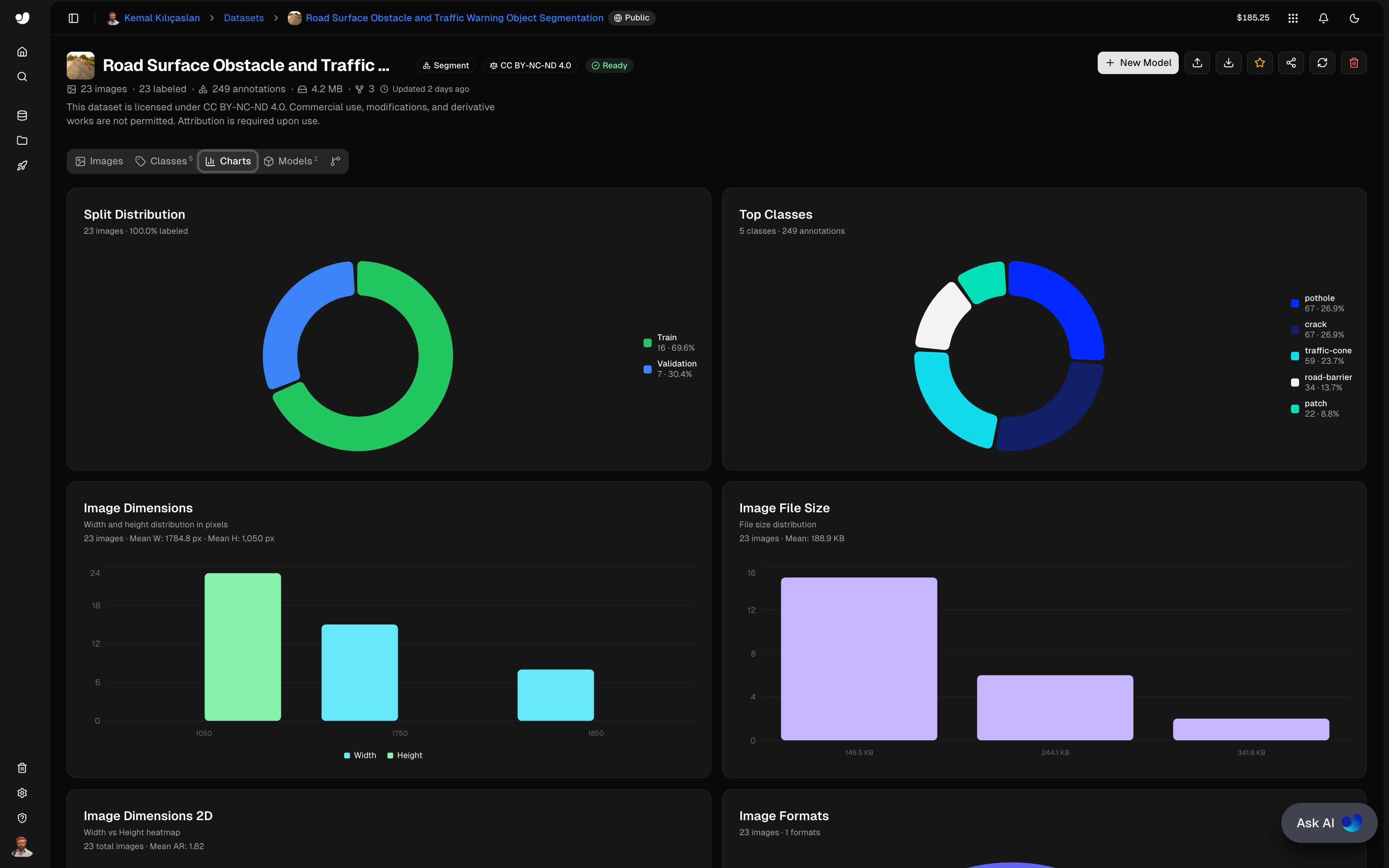

Dataset Charts 1:

Road Surface Obstacle and Traffic Warning Object Segmentation Charts 1

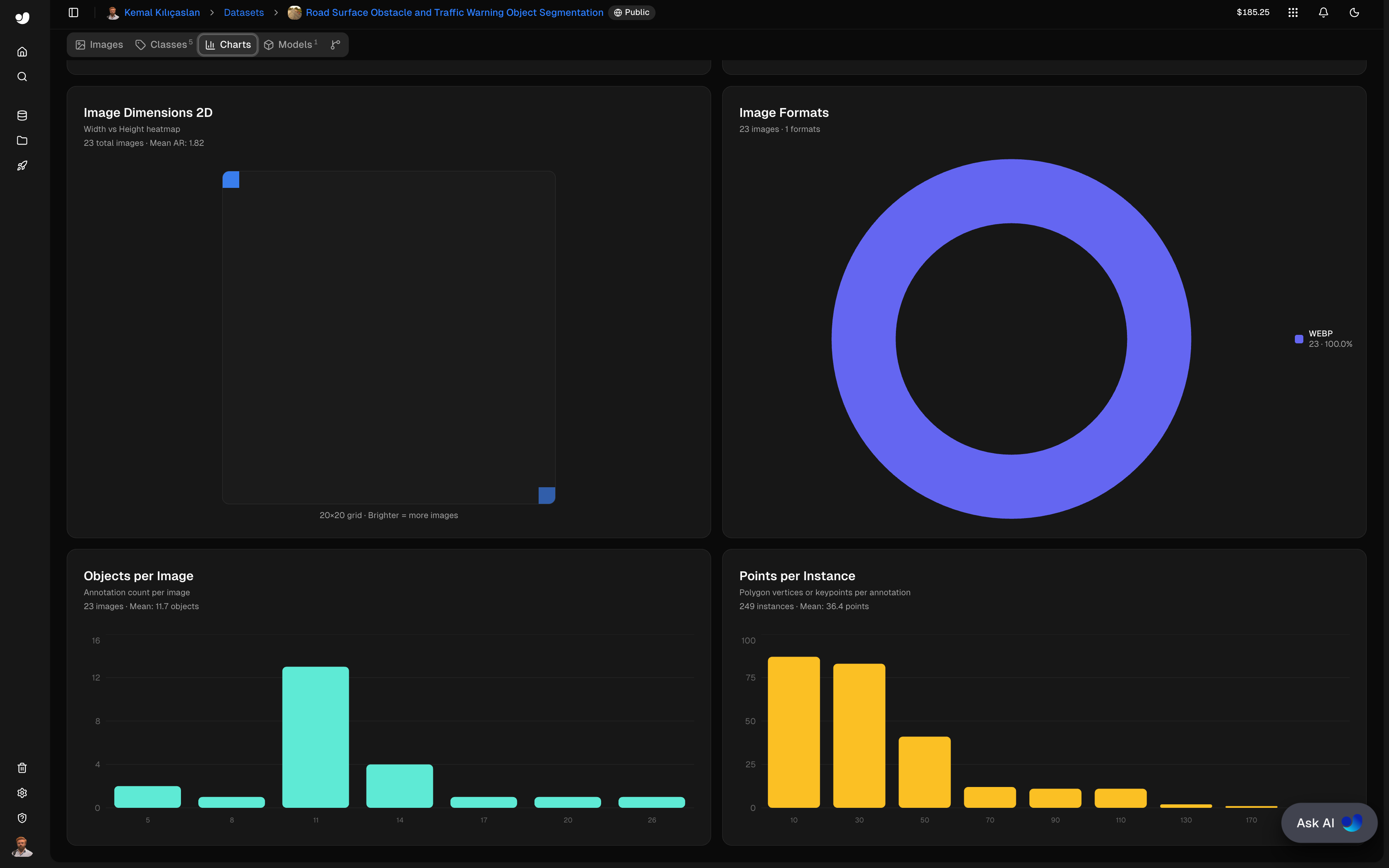

Dataset Charts 2:

Road Surface Obstacle and Traffic Warning Object Segmentation Charts 2

9.4 Model Metrics

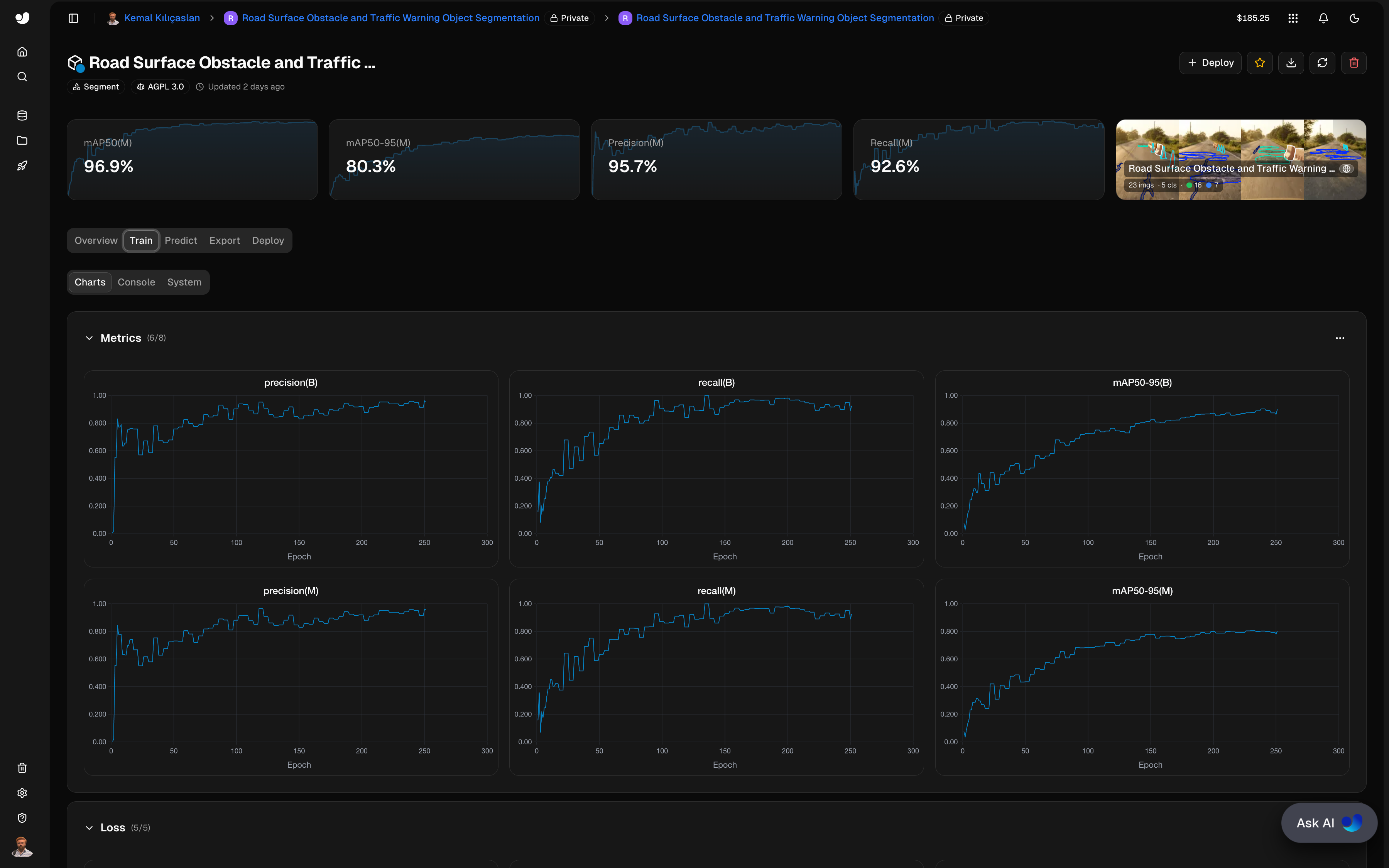

Training Metrics & Loss Curves:

Road Surface Obstacle and Traffic Warning Object Segmentation Model Metrics

mAP50: 96.9% | mAP50-95: 80.3% | Precision: 95.7% | Recall: 92.6%

10. Tech Stack

10.1 Core Technologies

  • Programming Language: Python 3.8+
  • Computer Vision: OpenCV 4.8+
  • Deep Learning Framework: Ultralytics YOLO 8.0+
  • Numerical Computing: NumPy 1.24+
  • Training Platform: Ultralytics Platform

10.2 Libraries & Dependencies

Library Version Purpose
opencv-python 4.8+ Video I/O, mask blending, contour drawing, label overlay
ultralytics 8.0+ YOLO segmentation model inference
numpy 1.24+ Mask array operations, ordering, resizing

10.3 Algorithm Components

Component Method Purpose
Instance Segmentation Custom YOLO26x-seg Detect and mask 5 road-level classes
Mask Resize Nearest-neighbour interpolation Match mask resolution to original frame
Mask Blending Alpha composition (cv2.addWeighted) Translucent per-class colored overlay
Contour Extraction cv2.findContours (RETR_EXTERNAL) Anti-aliased mask outlines
Label Contrast BT.601 luma threshold Auto black/white text per background

10.4 Detection Parameters

Parameter Value Description
Confidence Threshold 0.6 Minimum YOLO inference confidence
IoU Threshold 0.9 NMS IoU threshold
Mask Alpha 0.4 Mask transparency for blending
Contour Thickness 2 px Width of mask outline
Label Scale 0.6 Class label font scale

11. License

This project is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International (CC BY-NC-ND 4.0).

12. References

  1. Ultralytics Platform Documentation — Model training, inference, and deployment.
  2. Ultralytics Platform Road Surface Obstacle and Traffic Warning Object Segmentation System — Dataset annotation, training, and export.
  3. OpenCV Video I/O and Drawing Functions Documentation.

Acknowledgments

Special thanks to the Ultralytics team for the YOLO framework and Ultralytics Platform, which was used for dataset annotation, segmentation model training, and export. Thanks to the OpenCV community for providing excellent real-time video processing tools.

Note: This system is designed for research, educational, and authorized ADAS prototyping purposes. Detection accuracy may vary depending on camera angle, occlusion, lighting conditions, and domain shift between training and deployment environments. For production autonomous driving applications, additional validation with site-specific data, sensor fusion, and uncertainty signaling are required.
